This item is Discontinued.

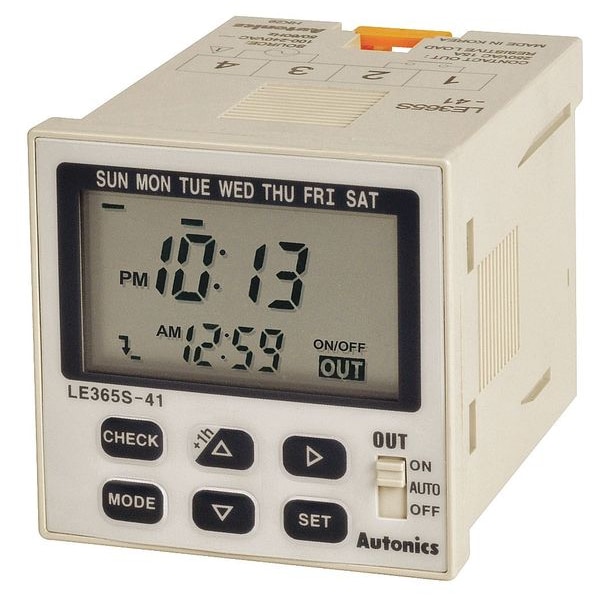

Autonics LCD Digital Timer, Weekly/Yearly Timer LE365S-41

LCD Digital Timer, Weekly/Yearly Timer (Discontinued)

  • Mfr # LE365S-41
  • Zoro # G5487797
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE365S-41
Zoro #
G5487797
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Width
1 7/8 in
Depth
2 1/4 in
Height
1 7/8 in
Overall Height
61 mm
Overall Depth
66 13/16 mm
Overall Width
48 mm

Details

Item
Electronic Timer
Operation Mode
365 Days
Number of Channels
1
Contact Form
SPST
Voltage
120 to 240V AC
Amps
15 A
Events Available - Electronic Timer
48
Available Actions - Electronic Timer
Cycle, On/Off, Pulse
Max. On/Off Cycles
48 Weekly, 24 Yearly
Max. Time Setting
365 day
Number of Pulse Events
24
Backup Time
5 yr
Mounting
Panel or Track
NEMA Rating
1
Pulse Duration
1 sec to 60 min
Min. Time Setting
1 min
Standards
CE, cULus
Event Allocation - Electronic Timer
1 Cycle Action = 3 Events, 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
Number of Poles
1
Features
Independent Control Relay Output
Backup Device
Battery
AC Voltage Rating
100-240V AC
Pulse Duration - Maximum
60 min
Time Setting - Maximum
365 day
Time Setting - Minimum
1 min
Series
LE365S-41
Pulse Duration - Minimum
1 sec
Mounting Style
DIN Rail and Surface
Current Rating - Maximum
15 A
Timer Functions
Cycle, On/Off, Pulse
Events Available
48
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
131 Degrees F
NEMA Enclosure Rating
1

Description

Electronic Timer, Operation Mode 365 Days, Number of Channels 1, Contact Form SPST, Voltage 120 to 240V AC, Amps 15 A, Events Available - Electronic Timer 48, Available Actions - Electronic Timer Cycle, On/Off, Pulse, Event Allocation - Electronic Timer 1 Cycle Action = 3 Events, 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event, Pulse Duration 1 sec to 60 min, Mounting Panel or Track, Number of Poles 1, Min. Time Setting 1 min, Max. Time Setting 365 day, NEMA Rating 1, Backup Device Battery
