Shop AVENTICS

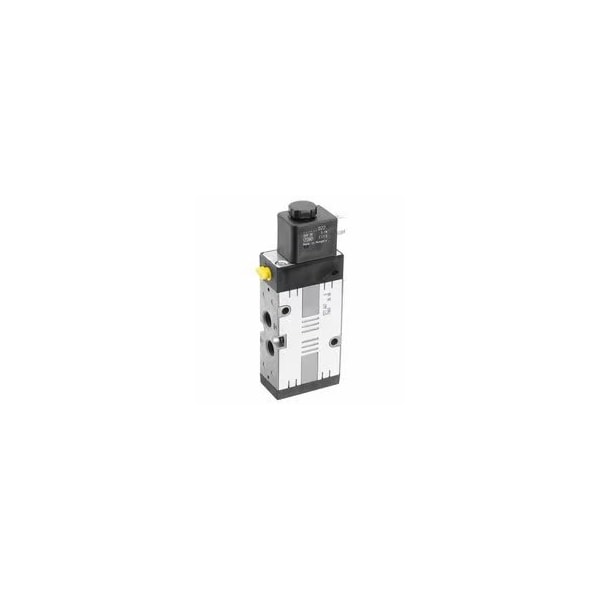

Solenoid Air Con Valve, Five-Way, 145 psi

  • Mfr # R432016584

  • Zoro # G310874824

product price:
$
153.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted, Inline
Series
740-CP
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
21.7 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R432016584
Zoro #
G310874824
UPC #
-
Country of Origin
Indonesia
Item
Solenoid Air Control Valve
Body Style
Base-Mounted, Inline
Series
740-CP
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
21.7 psi
Power Consumption
2.7 W
Body Material
Die Cast Zinc
Override
Non-Locking
Electrical Connections
Plug
Valve Ways and Positions
5-Way/2-Position
Standards
EN 175301-803:2006
Number of Positions
Three-Position
Number of Ways
Five-Way
Shifting Technology
Solenoid/Pilot
Ambient Temp. Range
-15 Degrees to 50 Degrees C
ISO Class
228-1
Operational Pressure Range
3 to 10 bar
Inlet Port Connection Type
NPT
Valve Action
Normally Open/Normally Closed
Pilot Port Connection Type
NPT
Electrical Connection Type
Plug-In
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
Operating Temperature - Maximum
122 Degrees F
Valve Type
Spool
Operating Pressure - Minimum
44 psi
For Media
Air
Seal Material
Rubber
Vacuum Rating
Not Vacuum Operable
Spool Material
Steel
Exhaust Port Connection Type
NPT
Operating Temperature - Minimum
5 Degrees F
Operating Pressure - Maximum
145 psi
Return Action
Solenoid Return
Actuator Type
Single Solenoid
Includes Mounting Hardware
Hardware Not Included
Flow Rate - Maximum
1,200 lpm
Number of Ports
5
Pilot Type
Internal Pilot
Product Type
Solenoid Air Control Valve
Body Features
Thin
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class 228-1, Pipe Size 1/4 in, Operational Pressure Range 3 to 10 bar, Body Style Base-Mounted, Inline, Pilot Pressure 21.7 psi, Plug Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 2.7 W, Ambient Temp. Range -15 Degrees to 50 Degrees C, Override Non-Locking, Overall Height 9 7/16 in
