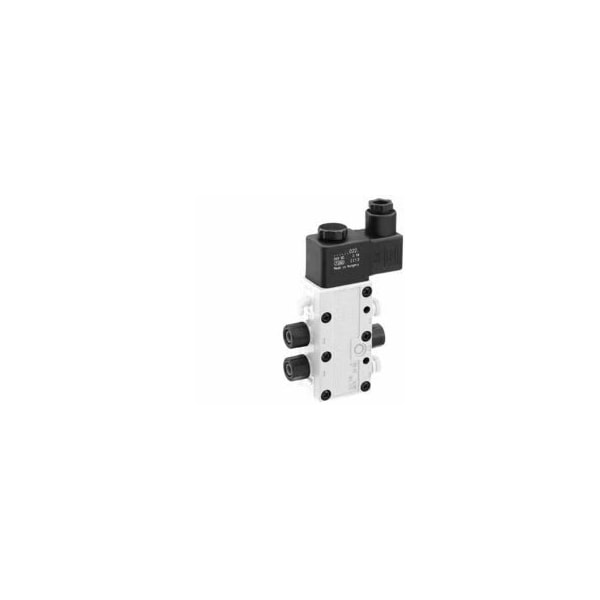

Solenoid Air Con Valve, Five-Way, 145 psi

  • Mfr # 5727495270

  • Zoro # G010854454

product price:
$
184.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted, Inline
Series
740
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
21.7 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5727495270
Zoro #
G010854454
UPC #
-
Country of Origin
Hungary
Item
Solenoid Air Control Valve
Body Style
Base-Mounted, Inline
Series
740
Voltage
110V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
21.7 psi
Power Consumption
2.7 W
Body Material
Nylon
Override
Non-Locking
Valve Ways and Positions
5-Way/2-Position
Number of Positions
Two-Position
Ambient Temp. Range
-15 Degrees to 50 Degrees C
Standards
EN 175301-803:2006
Operational Pressure Range
1.4 to 10 bar
Number of Ways
Five-Way
Shifting Technology
Solenoid
Inlet Port Connection Gender
Female
Operating Pressure - Minimum
20 psi
Exhaust Port Connection Gender
Female
Flow Rate - Maximum
700 lpm
Exhaust Port Connection Type
Push-On
Includes Solenoid Coil
Solenoid Coil Included
Return Time
36 msec
For Media
Air
Operating Temperature - Minimum
5 Degrees F
Electrical Connection Type
Plug-In
Product Type
Solenoid Air Control Valve
Valve Action
Normally Open/Normally Closed
Number of Ports
5
Inlet Port Connection Type
Push-On
Actuator Type
Single Solenoid
Vacuum Rating
Not Vacuum Operable
Pilot Type
Internal Pilot
Seal Material
Rubber
Includes Mounting Hardware
Hardware Not Included
Pilot Port Connection Type
Push-On
Body Features
Thin
Operating Pressure - Maximum
145 psi
Spool Material
Steel
Return Action
Spring Return
Operating Temperature - Maximum
122 Degrees F
Valve Type
Poppet

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 110V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/8 in, Operational Pressure Range 1.4 to 10 bar, Body Style Base-Mounted, Inline, Pilot Pressure 21.7 psi, Shifting Technology Solenoid, Power Consumption 2.7 W, Ambient Temp. Range -15 Degrees to 50 Degrees C, Override Non-Locking, Overall Height 5 3/16 in, Overall Length 2 11/16 in
