Shop AVENTICS

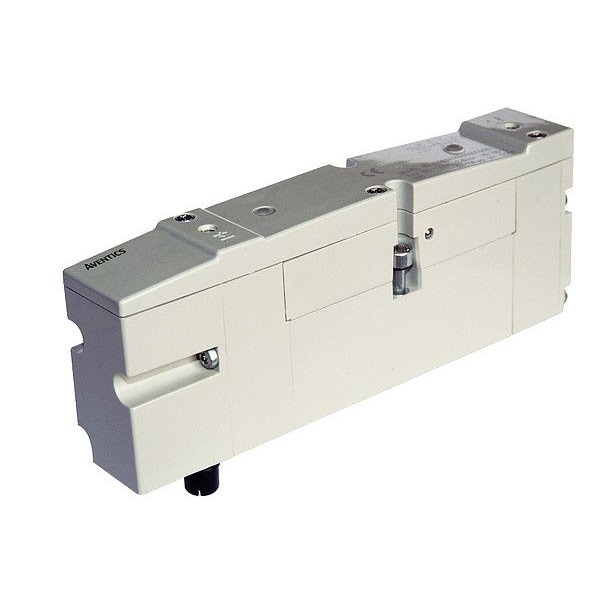

Solenoid Air Con Valve, Three-Way, 116 psi

  • Mfr # R502A2BD0MA00F1

  • Zoro # G610607405

product price:
$
113.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
502
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
58 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R502A2BD0MA00F1
Zoro #
G610607405
UPC #
-
Country of Origin
China
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
502
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Pilot Pressure
58 psi
Power Consumption
1.1 W
Body Material
Die Cast Zinc
Override
Non-Locking
Valve Ways and Positions
3-Way/2-Position
Number of Positions
Two-Position
Standards
CE Certified, cURus Listed
Number of Ways
Three-Way
Operational Pressure Range
2 to 8 bar
Shifting Technology
Solenoid/Pilot
Ambient Temp. Range
-10 Degrees to 50 Degrees C
ISO Class
7-4-4
Vacuum Rating
Not Vacuum Operable
Number of Ports
5
For Media
Air
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
Flow Rate - Maximum
650 lpm
Spool Material
Aluminum/Stainless Steel
Pilot Type
Remote Pilot
Exhaust Port Connection Type
Push-On
Operating Pressure - Maximum
116 psi
Return Time
15 msec
Electrical Connection Type
Plug-In
Includes Mounting Hardware
Hardware Not Included
Valve Type
Spool
Return Action
Solenoid Return
Includes Solenoid Coil
Solenoid Coil Included
Actuator Type
Double Solenoid
Operating Temperature - Minimum
14 Degrees F
Pilot Port Connection Type
Push-On
Fail Position
Closed
Inlet Port Connection Type
Push-On
Valve Action
Normally Closed
Product Type
Solenoid Air Control Valve
Body Features
Double
Pilot Port Connection Gender
Female
Operating Pressure - Minimum
29 psi
Seal Material
Nitrile/Polyurethane
Coefficient of Volume (Cv)
0.5
Operating Temperature - Maximum
122 Degrees F

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Solenoid, ISO Class 7-4-4, Operational Pressure Range 2 to 8 bar, Body Style Base-Mounted, Pilot Pressure 58 psi, Shifting Technology Solenoid/Pilot, Power Consumption 1.1 W, Ambient Temp. Range -10 Degrees to 50 Degrees C, Override Non-Locking, Overall Height 1 15/16 in, Overall Length 4 23/32 in, Overall Width 23/32 in
