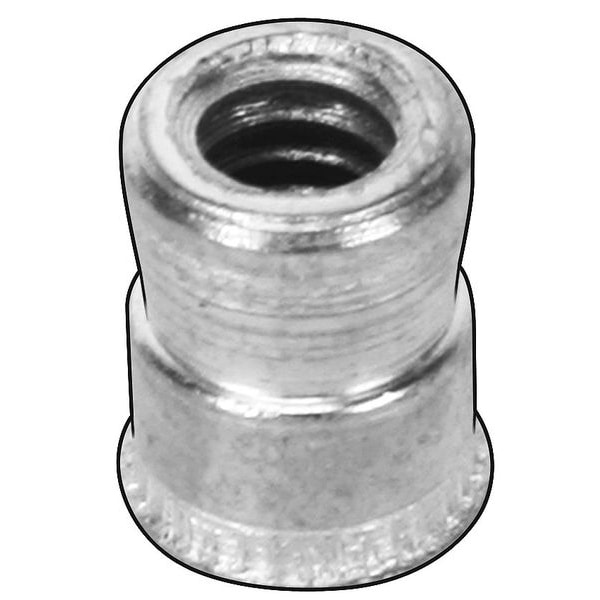

Nut Insert, #10-32 Thrd Sz, 3/4 in L, Sleeve, Stainless Steel, Plain, 10 PK
- Mfr # 4CUF6
- Zoro # G2038093
product price:Â
$
51.59
/pk of 10, $5.16/ea
Key Features
Thread Size
#10-32
Material
Stainless Steel
Finish
Plain
Maximum Hole Diameter
0.2805 in
Overall Length
3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4CUF6
- Zoro #
- G2038093
- UPC #
- -
- Country of Origin
- United States
- Item
- Nut Insert
- Material
- Stainless Steel
- Finish
- Plain
- Thread Type
- Fine
- Body Type
- Sleeve
- Body Texture
- Knurled
- Thread Direction
- Right Hand
- System of Measurement
- Inch
- Nut Style
- Flange
- Thread Fit
- 2A, 3A, 6G
- Compatible Material
- Fiberglass, Metal, Plastic
- Material Grade/Class
- 18-8
- Installation Method
- Spin/Spin Torque Stall Tool
- End Type
- Open
- Insert Nut Type
- Rivet Nut
- Shell Material
- Stainless Steel
- Traction Material
- Stainless Steel
Dimensions
- Thread Size
- #10-32
- Maximum Hole Diameter
- 0.2805 in
- Overall Length
- 3/4 in
- Insert Diameter
- 9/32 in
- Drill Bit Size
- 19/64 in, 9/32 in
- Minimum Material Thickness
- 0.03 in
- Length
- 3/8 in
- Flange Diameter
- 0.306 in
- Maximum Material Thickness
- 0.09 in, 0.124 in, 0.186 in
- Installed Length
- 13/64 in
- Wire Rope Length
- 3/8 in
- Hole Diameter - Maximum
- 0.281 in
Description
Threaded Insert, System of Measurement Inch, Insert Diameter 9/32 in, Overall Length 3/8 in, Installed Length 13/64 in, Thread Size #10-32, Thread Direction Right Hand, Thread Type Fine, Flange Diameter 0.306 in, Flange Thickness Not Applicable, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Body Texture Knurled, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 19/64 in, 9/32 in, L, Maximum Hole Diameter 0.2805 in, Minimum Material Thickness 0.03 in
