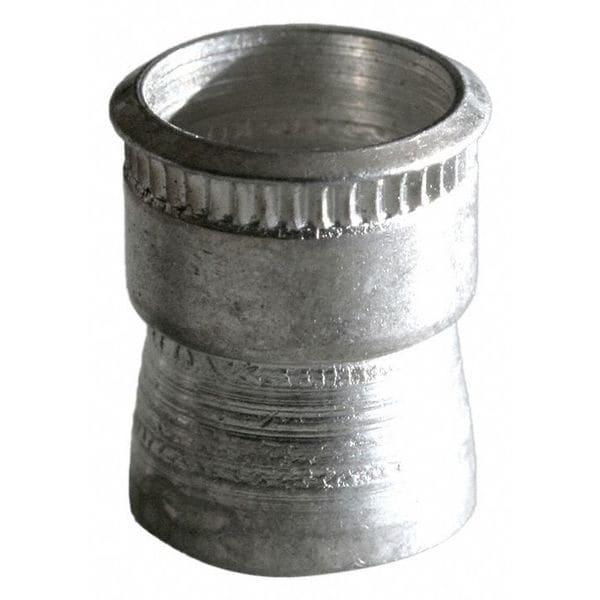

Nut Insert, 3/8"-16 Thrd Sz, 3/4 in L, Sleeve, Stainless Steel, Plain, 10 PK
- Mfr # 4CUF9
- Zoro # G0693524
CAD Available
product price:Â
$
96.69
/pk of 10, $9.67/ea
Key Features
CAD Drawing
Thread Size
3/8"-16
Material
Stainless Steel
Finish
Plain
Maximum Hole Diameter
0.5615 in
Overall Length
3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 4CUF9
- Zoro #
- G0693524
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- 3/8"-16
- Maximum Hole Diameter
- 0.5615 in
- Overall Length
- 3/4 in
- Insert Diameter
- 9/16 in
- Drill Bit Size
- 37/64 in, 9/16 in
- Minimum Material Thickness
- 0.03 in
- Length
- 3/4 in
- Flange Diameter
- 0.588 in
- Maximum Material Thickness
- 0.09 in, 0.124 in, 0.186 in
- Installed Length
- 25/64 in
- Wire Rope Length
- 3/4 in
Description
Threaded Insert, System of Measurement Inch, Insert Diameter 9/16 in, Overall Length 3/4 in, Installed Length 25/64 in, Thread Size 3/8 In.-16, Thread Direction Right Hand, Thread Type Coarse, Flange Diameter 0.588 in, Flange Thickness Not Applicable, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Body Texture Knurled, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 37/64 in, 9/16 in, Maximum Hole Diameter 0.5615 in, Minimum Material Thickness 0.03 in
