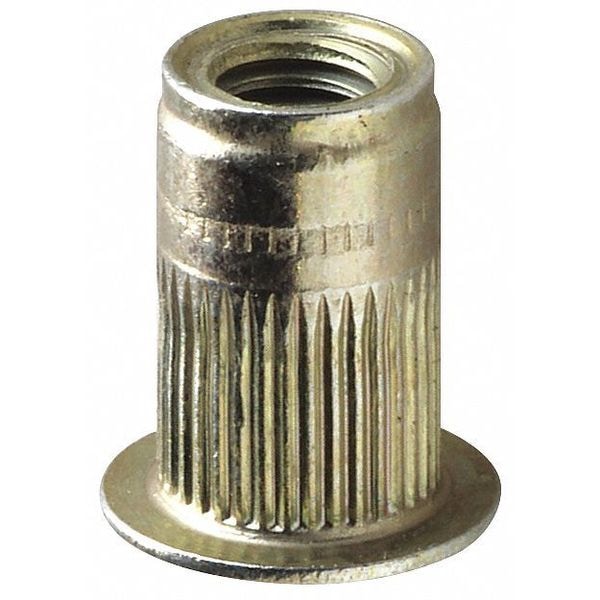

Rivet Nut, 1/2"-13 Thread Size, 0.865 in Flange Dia., 1.15 in L, Steel, 10 PK
Mfr # ALS4T-813-200
Zoro # G5850929
CAD Available
product price:Â $15.29
/pk 10, $1.53/eaKey Features
CAD Drawing
Body Texture
Knurled
Flange Style
Flanged
Thread Size
1/2"-13
Drill Bit Size
11/16"
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
ALS4T-813-200
Zoro #
G5850929
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1/2"-13
Drill Bit Size
11/16"
Flange Diameter
0.865 in
Insert Diameter
0.685 in
Overall Length
1.15 in
Hole Size
0.688 in
Head Height
0.047 in
Installed Length
27/32 in
Body Length
1 5/32 in
Maximum Hole Diameter
0.685 in
Flange Thickness
0.047 in
Minimum Material Thickness
0.063 in
Maximum Material Thickness
0.2 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 11/16 in, Overall Length 1 13/64 in, Installed Length 27/32 in, Thread Size 1/2 In.-13, Thread Direction Right Hand, Thread Type Coarse, Flange Diameter 0.865 in, Flange Thickness 0.047 in, Material Steel, Material Grade/Class 1010/1008, Body Texture Knurled, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 11/16 in, Maximum Hole Diameter 0.685 in, Minimum Material Thickness 0.063 in, Maximum Material Thickness 0.2 in
