Shop AXIS

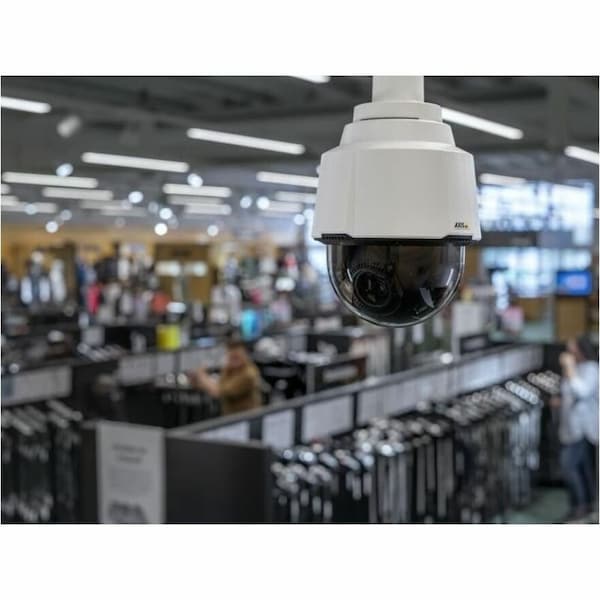

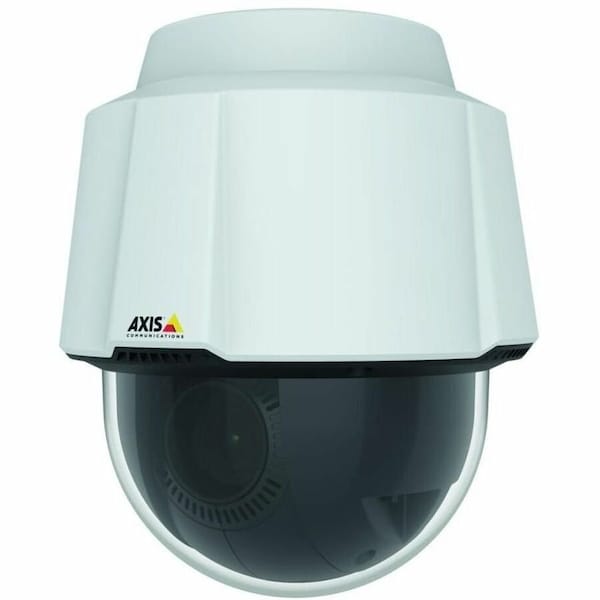

P5654-E Mk II Outdoor Full HD Network Camera - Color - Dome - White

  • Mfr # 02915-001

  • Zoro # G111332165

product price:
$
2,285.99
/ea
Free Shipping & Returns

Key Features

Color
White
Outside Dia.
5.9"
Input Voltage
240 V AC
Maximum Video Resolution
1920 x 1080
Maximum Aperture
f/4.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
02915-001
Zoro #
G111332165
UPC #
46171610
Country of Origin
Mexico

Dimensions

Outside Dia.
5.9"
Minimum Focal Length
4 mm
Maximum Focal Length
84.60 mm
Image Sensor Size
1/2.8"

Details

Item
Network Camera
Color
White
Input Voltage
240 V AC
Maximum Video Resolution
1920 x 1080
Maximum Aperture
f/4.5
Recording Formats
Full HD
Environmentally Friendly
Yes
Minimum Aperture
f/1.6
Durability
Shock Resistant
Package Contents
Camera,, installation guide, , smoked dome, , RJ45 push-pull connector (IP66), , hard ceiling mount, , spring clip adapter, , U-profile adapter pipe
Features
Vehicle Detection, HTTPS Encryption, Defog, Auto Tracking, Ingress Protection, Wide Dynamic Range, White Balance, Day/Night, Human Detection, Privacy Masking
Shortest Shutter Speed
1/66500 Second
Camera Iris
Auto
HD Recording
Yes
Image Sensor Type
CMOS
Night Vision Type
Infrared
Ingress Protection Rating
IP66
Optical Zoom
21x
Indoor/Outdoor
Outdoor
Impact Protection Rating
IK10
Maximum Operating Temperature
122°F (50°C)
Lens Included
Yes
Storage Type
Memory Card
Color Supported
Color
Night Vision
Yes
Minimum Operating Temperature
-22°F (-30°C)
Lens Type
Varifocal
Longest Shutter Speed
2 Second
Remote Management
Yes
Video Formats
H.265, H.264M (MPEG-4 Part 10/AVC), Motion JPEG, H.264, H.264H (MPEG-4 Part 10/AVC), H.264 (MPEG-4 Part 10/AVC), H.264B (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC)
Maximum Frame Rate
60 fps
Ethernet Technology
Fast Ethernet
Protocols
IGMPv1/v2/v3, HTTP/2, TLS, SFTP, TCP, SMTP, ARP, HTTPS, UDP, SSH, LLDP, RTCP, IPv4, RTP, Syslog, ICMP, NTP, HTTP, NTS, CIFS/SMB, mDNS (Bonjour), DNS/DNSv6, IEEE 802.1X, IEEE 802.1AR, UPnP, NTCIP, SNMPv1/v2c/v3 (MIB2), SRTP/RTSPS, CDP, DDNS, ZeroConf, ICMPv4/ICMPv6, FTP, DHCPv4/v6, DiffServ (QoS), RTSP, MQTT v3.1.1, IPv6 USGv6
Field of View
Horizontal: 77.0°-3.6°, Vertical: 43.1°-2.0°
Maximum Operating Humidity
0.95
Network (RJ-45)
Yes
Connectivity Technology
Wired
Power Source Type
PoE+, AC
Maximum Power Consumption
37 W
Series
P56
