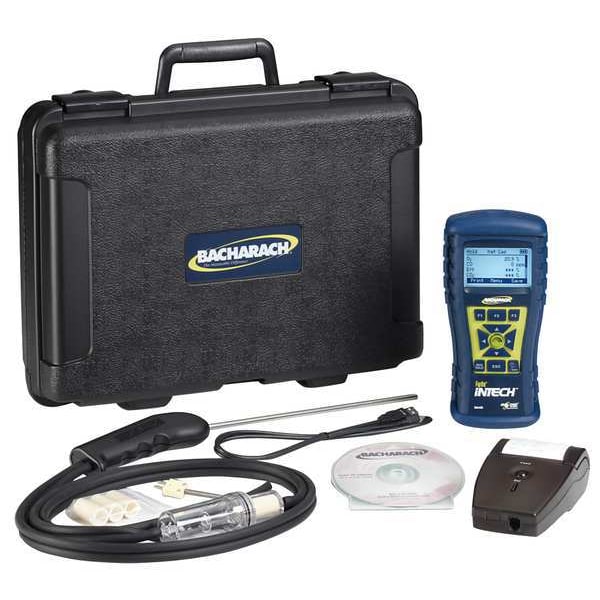

Bacharach Combustion Analyzer Kit 0024-8512 - main

Combustion Analyzer Kit

  • Mfr # 0024-8512

  • Zoro # G8984272

product price: $1,397.99
/ea
Free Shipping & Returns

Key Features

Primary/Ambient Air Temp.
-4 Degrees to 212 Degrees F
Replacement Sampling Assembly
0019-3265 Replacement Water Trap/Filter Assembly (For Probe Assembly)
Oxygen Concentration
0.0% to 20.9%
Carbon Monoxide Measurement Range
0 to 2000 ppm
Type
InTech Residential
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0024-8512
Zoro #
G8984272
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Instrument and Co Sensor 2 yr, O2 Sensor 1 yr
Manufacturer Warranty Length
2 yr
Battery Size
AA
Display Size
2.7 in

Details

Item
Combustion Analyzer Kit
Primary/Ambient Air Temp.
-4 Degrees to 212 Degrees F
Replacement Sampling Assembly
0019-3265 Replacement Water Trap/Filter Assembly (For Probe Assembly)
Oxygen Concentration
0.0% to 20.9%
Carbon Monoxide Measurement Range
0 to 2000 ppm
Type
InTech Residential
Stack Temp.
-4 Degrees to 1202 Degrees F
Carbon Dioxide Concentration
0.1 To A Fuel Dependent Maximum (in %)
Fuel Type
5 Pre-Programmed Fuels Options, Natural Gas, Oil #2, Oil #6, Kerosene, B5, And Propane/LPG
Combustion Efficiency
0.1 to 100%
Excess Air
0 to 250%
Includes
Protective Case, Reporting Kit (IrDA Wireless Printer, USB Cable and Fyrite User Software)
Display
High Contrast LCD Display With Backlighting
Battery Type
(4) AA Alkaline
Features
Ambient CO Monitoring Function Allows Technicians to Check For Dangerous CO Levels, Combustion App Allows users to Create Custom Reports
Maximum Carbon Dioxide Measured
2,000 ppm
Maximum Oxygen Measured
20.9 % v/v
Minimum Combustion Efficiency
0.1 %
Maximum Excess Air Measured
250 %
Selectable Fuel Options
B5, Bio Fuel, Butane, Kerosene, KOKS, LEG, LPG, Natural Gas, Oil 2/6, Propane
Number of Batteries Required
4
Maximum Stack Temperature Measured
1,202 Degrees F
Battery Run Time
15 hr
Maximum Operating Temperature
113 Degrees F
Minimum Oxygen Measured
0 % v/v
Batteries Included
Yes
Calibration Certificate Type
Available Separately
Maximum Carbon Monoxide Measured
2,000 ppm
Minimum Carbon Monoxide Measured
0 ppm
Minimum Carbon Dioxide Measured
0 ppm
Maximum Combustion Efficiency
100 %
Minimum Excess Air Measured
0 %
Digital Display Screen Type
LCD
Minimum Stack Temperature Measured
-4 Degrees F
Battery Chemistry
Alkaline
Minimum Operating Temperature
23 Degrees F

Description

Combustion Analyzer Kit, Digital Display Screen Type LCD, Maximum Carbon Monoxide Measured 2,000 ppm, Maximum Oxygen Measured 20.9 Percent v/v, Minimum Oxygen Measured 0 Percent v/v, Selectable Fuel Options B5, Bio Fuel, Butane, Kerosene, KOKS, LEG, LPG, Natural Gas, Oil 2/6, Propane, Minimum Carbon Monoxide Measured 0 ppm, Maximum Combustion Efficiency 100 Percent, Minimum Combustion Efficiency 0.1 Percent, Maximum Excess Air Measured 250 Percent, Minimum Excess Air Measured 0 Percent
