  9. Combustion Analyzer, 32to113F, 21% v/vO2
Shop All Combustion Analyzers
Uei Test Instruments

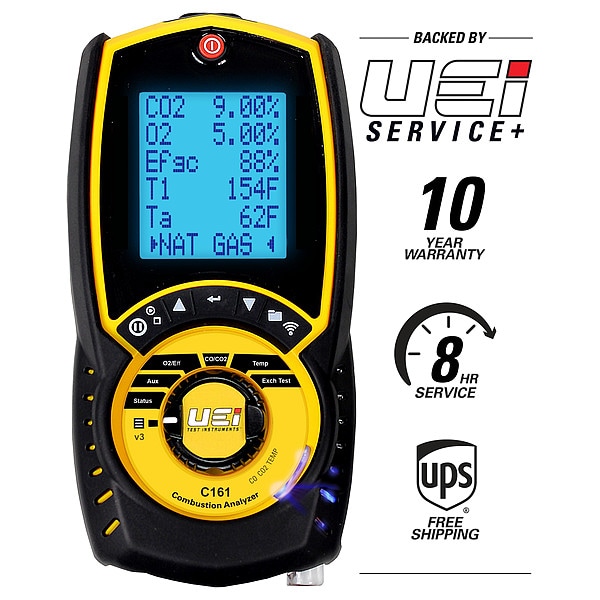

Combustion Analyzer, 32to113F, 21% v/vO2

product price: $578.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Residential
  • Fuel Type Bio Oil, Butane, Heavy Oil, Light Oil, LPG, Natural Gas, Pellets, Propane
  • Combustion Efficiency 0 to 99.9%
  • Oxygen Concentration 0 to 21%
  • Carbon Dioxide Concentration 0 to 20%
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr Extended Up to 6 Years with Annual Re-certification
Battery Size AA
Manufacturer Warranty Length 10 yr

Details

Item Combustion Analyzer
Type Residential
Fuel Type Bio Oil, Butane, Heavy Oil, Light Oil, LPG, Natural Gas, Pellets, Propane
Combustion Efficiency 0 to 99.9%
Oxygen Concentration 0 to 21%
Carbon Dioxide Concentration 0 to 20%
Features Analyzer Calculates Essential Information For Installing and Maintaining Gas Appliances, Differential Temperature and Altitude Compensation, Heat Exchanger Test, Multiple Sensor Protections
Includes Micro USB Cable, Flue Probe, Water Trap
Battery Type AA Rechargeable
Display 6-Line LCD
Minimum Carbon Monoxide Measured 0 ppm
Maximum Carbon Monoxide Measured 2,000 ppm
Battery Run Time 8 hr
Selectable Fuel Options Bio Oil, Heavy Oil, Light Oil, LPG, Natural Gas, Pellets, Propane
Minimum Excess Air Measured 0 %
Minimum Carbon Dioxide Measured 0 % v/v
Calibration Certificate Type Available Separately
Digital Display Screen Type LCD with Backlight
Maximum Carbon Dioxide Measured 20 % v/v
Minimum Stack Temperature Measured 32 Degrees F
Number of Batteries Required 3
Maximum Operating Temperature 113 Degrees F
Maximum Excess Air Measured 119.9 %
Minimum Oxygen Measured 0 % v/v
Batteries Included Yes
Maximum Oxygen Measured 21 % v/v
Battery Chemistry Alkaline
Minimum Operating Temperature 32 Degrees F
Maximum Stack Temperature Measured 1,112 Degrees F
Minimum Combustion Efficiency 0 %
Maximum Combustion Efficiency 99.9 %

Description

Combustion Analyzer, Digital Display Screen Type LCD with Backlight, Maximum Carbon Monoxide Measured 2,000 ppm, Maximum Oxygen Measured 21 Percent v/v, Minimum Oxygen Measured 0 Percent v/v, Selectable Fuel Options Bio Oil, Heavy Oil, Light Oil, LPG, Natural Gas, Pellets, Propane, Minimum Carbon Monoxide Measured 0 ppm, Maximum Combustion Efficiency 99.9 Percent, Minimum Combustion Efficiency 0 Percent, Maximum Excess Air Measured 119.9 Percent, Minimum Excess Air Measured 0 Percent
