  5. Flowmeter, 4 Bolt, 310 gpm, 3 in. NPT

This item is Discontinued.

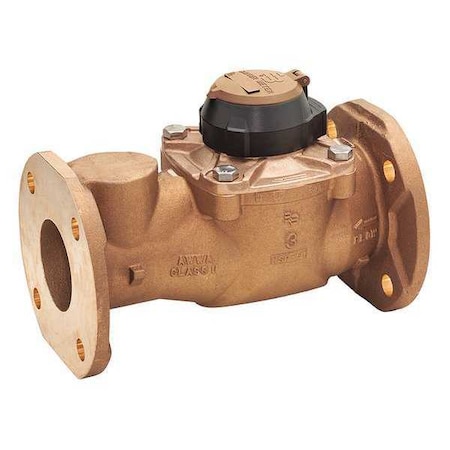

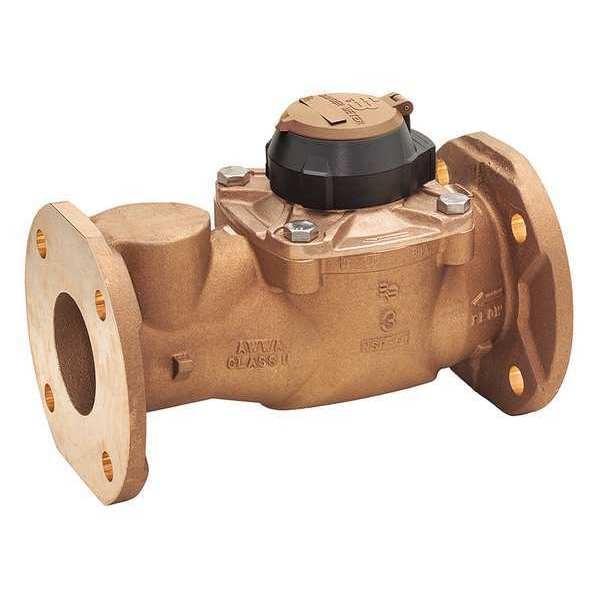

Badger Flowmeter, 4 Bolt, 310 gpm, 3 in. NPT RT-0300BRNPNSX-TS-GAXX

Flowmeter, 4 Bolt, 310 gpm, 3 in. NPT (Discontinued)

  • Mfr # RT-0300BRNPNSX-TS-GAXX
  • Zoro # G5409704
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RT-0300BRNPNSX-TS-GAXX
Zoro #
G5409704
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
3 in
Connection Size
3 in
Manufacturers Warranty Length
18 mo
Length (In.)
10"
Height (In.)
6-1/2
Height
6 1/2 in
Connection Size (In.)
3
Length
10 in
Width
5 27/32 in
Width (In.)
5-27/32"
Cable Length (Ft.)
10 ft
Manufacturer Warranty Length
18 mo
Overall Height
6.5 in
Overall Length
10 in
Cable Length
10 ft
Overall Width
5.8 in

Details

Item
Mechanical Flowmeter
Type
Turbine, 4 Bolt
Housing Material
Brass
Flow Material
Water
Connection Type
Flange
Max. Pressure
150 psi
Wetted Materials
Bronze, Stainless Steel, Thermal Plastic
Max. Viscosity
32.6 SUS
Flow Range
5 to 550 gpm
Fluid Temp. Range
32 Degrees to 80 Degrees F
Fitting
NSF 61 Low Lead Brass
GPM Max.
550 gpm
Pressure Drop - 100% Flow (PSI)
3.1 psi
Max. Reed Switch Current (mA)
30 mA
Pulses per Gallon
0.01 pulses/gal
Max. Temp. (F)
80
Output
Pulse per 100 gal
Gauge/Conductor
22/2
Shaft Material
Stainless Steel
Master Totalizer
999,999,000 gal
Specific Gravity
1
Flow Range @ GPH
240 to 18,600
Accuracy (%)
+/-1.5% of Reading
Max. Viscosity (SSU)
32.6
Includes
Local Transmitter Register
Flow Range (GPM)
4 to 310
Seal Material
EPDM
Max. Pressure (PSI)
150
Display
Mechanical Dial
Chamber Material
NSF 61 Low Lead Brass
Standards
AWW C-700 NSF/ANSI 61&372
Flow Range @ CCM
15142 to 1,173,478
Thread
NPT
Temp.
120 Degrees F
Application
For Measuring Water Flows in Chromatography Systems, Desalinization Equipment, Medical Systems, Photo Equipment, Water Treatment and Distribution, Aquaculture System, Commercial and Residential Potable Water
Flow Range (LPM)
15.1 to 1173.5
Display Type
Mechanical
Output Type
Scaled Pulse
Product Type
Mechanical Flowmeter
Wetted Material
Bronze, Stainless Steel, Thermoplastic
Media Temperature - Maximum
80 Degrees F
Accuracy
+/-1.5%
Unit Of Measure
Gallons
Viscosity - Maximum
32.6 SUS
Media Temperature - Minimum
32 Degrees F
Flowmeter Type
Turbine
Operating Pressure - Maximum
150 psi
Pulse Rate
0.01 pulses/gal
Flow Rate - Maximum
550 gpm
Flow Rate - Minimum
5 gpm
Compatible Flow Material
Water

Description

Mechanical Flowmeter, Product Type Mechanical Flowmeter, Flowmeter Type Turbine, Accuracy +/-1.5 Percent, Connection Size 3 in, Connection Type Flange, Compatible Flow Material Water, Media Temperature - Maximum 80 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 32.6 SUS, Housing Material Brass, Seal Material EPDM, Shaft Material Stainless Steel, Wetted Material Bronze, Stainless Steel, Thermoplastic, Standards AWW C-700 NSF/ANSI 61&372, Unit Of Measure Gallons
