Shop BADGER

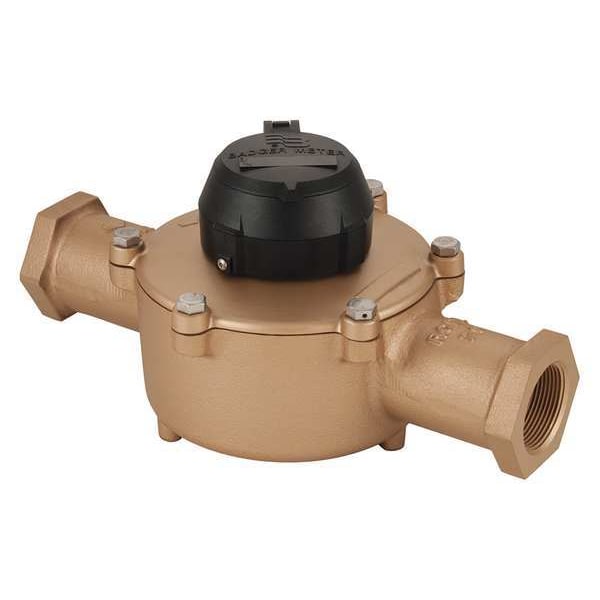

Flowmeter, 70gpm, 150 psi, 10-3/4 in.

  • Mfr # 103-6641

  • Zoro # G5403815

product price:  $584.99
/ea
Free Shipping & Returns

Key Features

Type
Positive Displacement
Housing Material
Bronze
For Pipe Size
1 in
Connection Size
1 in
Flow Material
Water
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
103-6641
Zoro #
G5403815
UPC #
-
Country of Origin
Mexico

Dimensions

For Pipe Size
1 in
Connection Size
1 in
Height
6 1/2 in
Width (In.)
7-3/4"
Length
10 3/4 in
Manufacturers Warranty Length
18 mo
Connection Size (In.)
1
Width
7 3/4 in
Length (In.)
10-3/4"
Height (In.)
6-1/2
Manufacturer Warranty Length
18 mo
Overall Height
6.5 in
Overall Length
10.8 in
Overall Width
7.8 in
Wire Rope Length
10.8 in

Details

Item
Mechanical Flowmeter
Type
Positive Displacement
Housing Material
Bronze
Flow Material
Water
Connection Type
NPT
Max. Pressure
150 psi
Max. Viscosity
32.6 SUS
Wetted Materials
Bronze, Nylon, Stainless Steel, Thermal Plastic
Flow Range
1.25 to 70 gpm
Fluid Temp. Range
32 Degrees to 80 Degrees F
Fitting
NSF 61 Low Lead Brass
Accuracy (%)
+/-1.5% of Reading
Max. Pressure (PSI)
150
Flow Range @ GPH
60 to 4200
Pressure Drop - 100% Flow (PSI)
13.0 psi
Specific Gravity
1
Max. Viscosity (SSU)
32.6
Flow Range (LPM)
3.8 to 265
Flow Range (GPM)
1 to 70
Application
For Measuring Water Flows in Chromatography Systems, Desalinization Equipment, Medical Systems, Photo Equipment, Water Treatment and Distribution, Aquaculture System, Commercial and Residential Potable Water
Master Totalizer
9,999,990 gal
Flow Range @ CCM
3785 to 264,979
Includes
Local Register
Chamber Material
NSF 61 Low Lead Brass
Standards
AWW C-700 NSF/ANSI 61&372
Seal Material
EPDM
Max. Temp. (F)
80
Shaft Material
Stainless Steel
Pressure Drop - 50% Flow (PSI)
3.0 psi
Temp.
120 Degrees F
Thread
NPT
GPM Max.
70 gpm
Display
Mechanical Dial
Display Type
Mechanical
Product Type
Mechanical Flowmeter
Viscosity - Maximum
32.6 SUS
Mounting Orientation
Horizontal
Compatible Flow Material
Water
O-Ring Material
Ethylene Propylene
Media Temperature - Maximum
80 Degrees F
Media Temperature - Minimum
32 Degrees F
Flow Rate - Maximum
70 gpm
Includes Totalizer
Yes
Accuracy
+/-1.5%
Flow Rate - Minimum
1.25 gpm
Wetted Material
Bronze, Nylon, Stainless Steel, Thermoplastic
Operating Pressure - Maximum
150 psi
Flowmeter Type
Positive Displacement
Includes Pressure Gauge
No
Unit Of Measure
Gallons
Includes Flow Rate Adjustment Knob
No

Description

Mechanical Flowmeter, Product Type Mechanical Flowmeter, Flowmeter Type Positive Displacement, Accuracy +/-1.5 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Water, Media Temperature - Maximum 80 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum Not Applicable, Housing Material Bronze, Rotor Material Not Applicable, O-Ring Material Ethylene Propylene, Seal Material EPDM, Shaft Material Stainless Steel
