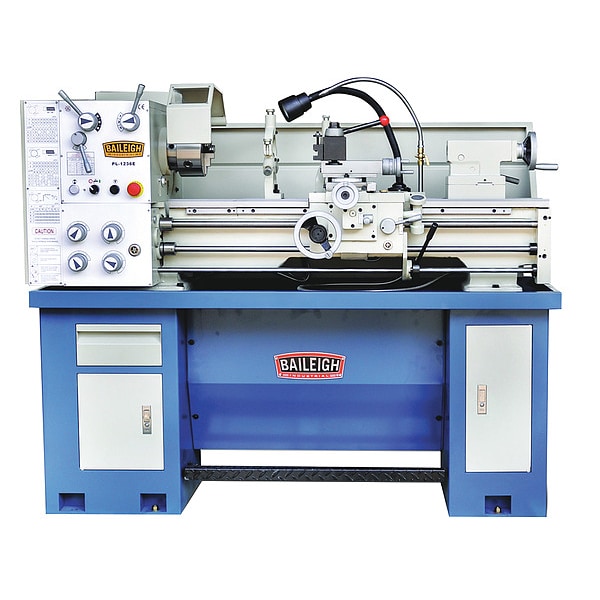

Baileigh Industrial Lathe, 220V, 1-1/2 Motor HP, 60 Hz PL-1236E-1.0 - main

Lathe, 220V, 1-1/2 Motor HP, 60 Hz

  • Mfr # PL-1236E-1.0

  • Zoro # G3978767

product price: $11,879.99
/ea
Additional $720.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
1-1/2
Phase
Single
Voltage
220V AC
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PL-1236E-1.0
Zoro #
G3978767
UPC #
-
Country of Origin
China

Dimensions

Overall Length
150.00mm
Gap Length (In.)
6
Gap Length
6 in
Bed Width
7 1/8 in
Overall Depth
150 mm
Leadscrew Size
8 TPI

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
1-1/2
Phase
Single
Voltage
220V AC
Frequency
60 Hz
Swing Over Bed (In.)
12
Distance Between Centers
36 in
Horsepower
1 1/2 hp
Cross Feed Rates
0.007 to 0.018
Distance Between Centers (In.)
36
Spindle Bore (In.)
1-1/2
Swing In Gap (In.)
17
Features
Economical 4 Corner Insert with a Chip Breaker that Enhances Cutting Performance While Maintaining Rigidity, End Mill and Face Mill Styles, High Feed Design Reduces Radial Cutting Forces and Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness
Hz
60
Tailstock Taper
MT3
Thread Range (In.)
4 to 56
Swing Over Cross Slide (In.)
7-5/8
Longitudinal Feed Rates
0.002 to 0.054
Number of Spindle Speeds
9
Machine Type
Engine lathe
Min. Cross Feed
0.007 in/rev
Min. Metric Thread
0.40mm
Swing Over Cross Slide
7 5/8 in
Min. Threads per Inch
4
Max. Spindle Speed
1400 RPM
Min. Spindle Speed
70 RPM
Spindle Bore
1 1/2 in
Max. Cross Feed
0.0187 in/rev
Application
Metal Turning
Max. Metric Thread
7.00mm
Swing Over Bed
12 in
Spindle Speed - Maximum
1,400 RPM
Threads per Inch - Maximum
56
Metric Thread - Minimum
0.4 mm
Includes Stand
Stand Included
Spindle Nose Taper
MT3
Spindle Speed - Minimum
70 RPM
Metric Thread - Maximum
7 mm
Cross Feed - Minimum
0.007 in/rev
Manufacturer Warranty
1 yr
Longitudinal Feed - Minimum
0.002 in/rev
Lathe Head Drive
Gear Drive
Threads per Inch - Minimum
4
Series
PL-1236E
Cross Feed - Maximum
0.0187 in/rev
Longitudinal Feed - Maximum
0.0548 in/rev

Description

Lathe, Distance Between Centers 36 in, Voltage 220V AC, Horsepower 1 1/2 hp, Min. Spindle Speed 70 RPM, Application Metal Turning, Max. Spindle Speed 1400 RPM, Tailstock Taper MT3
