Shop DAYTON

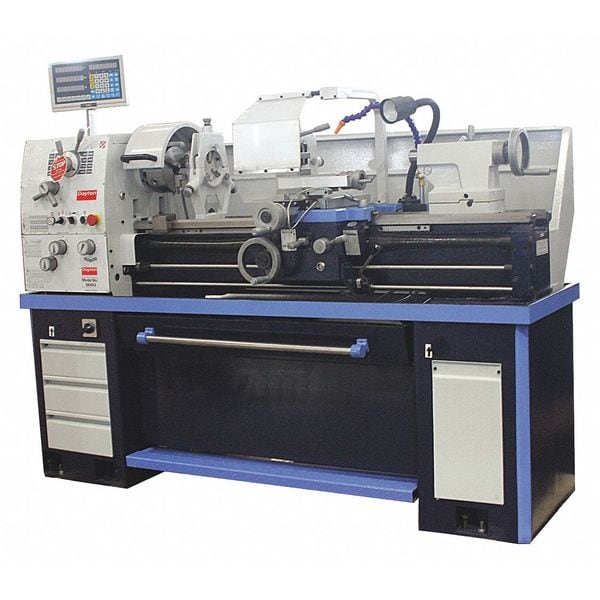

Lathe, 230V AC Volts, 2 1/4 hp HP, 60 Hz, Three Phase 40 in Distance Between Centers

  • Mfr # 467K88

  • Zoro # G7133012

product price:  $21,198.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Primary Application
Metal Turning
Motor HP
2/1/04
Phase
Three
Voltage
230V AC
Frequency
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
467K88
Zoro #
G7133012
UPC #
-
Country of Origin
China

Dimensions

Bed Width (In.)
8
Overall Width
30 in
Gap Length (In.)
9-1/2
Overall Height
58 in
Overall Length
76 in
Bed Width
8 in
Gap Length
9 1/2 in
Overall Depth
76 in
Wire Rope Length
76 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
2/1/04
Phase
Three
Voltage
230V AC
Frequency
60 Hz
Swing Over Bed (In.)
14
Distance Between Centers
40 in
Horsepower
2 1/4 hp
Thread Range (mm)
0.45 to 7.5
Swing In Gap (In.)
20-1/4
Spindle Bore (In.)
2
Cross Feed Rates
0.0005 to 0.0118
Swing Over Cross Slide (In.)
8-1/2
Spindle Taper
MT-6
Number of Threads (mm)
22
Spindle Speed (RPM)
45 to 1800
Compound Travel (In.)
3-3/4
Distance Between Centers (In.)
40
Number of Threads (In.)
40
Features
Emergency Stop
Thread Range (In.)
4 to 112
Includes
(2) 3MT Dead Centers, (4) Jaw Chucks, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
Longitudinal Feed Rates
0.0012 to 0.0294
Number of Spindle Speeds
8
Tailstock Travel (In.)
6
Cross Travel (In.)
6-1/2
Coolant Tank Capacity
2-39/64 gal.
Carriage Travel (In.)
36-3/8
Tailstock Taper
MT3
Hz
60
Number of Metric Threads
22
Number of Inch Threads
40
Swing Over Bed
14 in
Swing Over Cross Slide
8 1/2 in
Min. Metric Thread
0.45 mm
Swing In Gap
20 1/4 in
Max. Metric Thread
7.5 mm
Min. Threads per Inch
4
Max. Threads per Inch
112
Min. Spindle Speed
45 RPM
Max. Spindle Speed
1,800 RPM
Spindle Bore
2 in
Max. Cross Feed
0.0118 in
Min. Cross Feed
0.0005 in
Application
Metal Turning
Includes Digital Readout
Digital Readout Included
Swing Over Gap
9 1/2 in
Cross Feed - Minimum
0.0005 in/rev
Metric Thread - Maximum
7.5 mm
Metric Thread - Minimum
0.45 mm
Cross Feed - Maximum
0.0118 in/rev
Spindle Speed - Minimum
45 RPM
Threads per Inch - Minimum
4
Spindle Speed - Maximum
1,800 RPM
Threads per Inch - Maximum
112

Description

Lathe, Distance Between Centers 40 in, Voltage 230V AC, Horsepower 2 1/4 hp, Min. Spindle Speed 45 RPM, Application Metal Turning, Overall Height 58 in, Overall Length 76 in, Overall Width 30 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3
