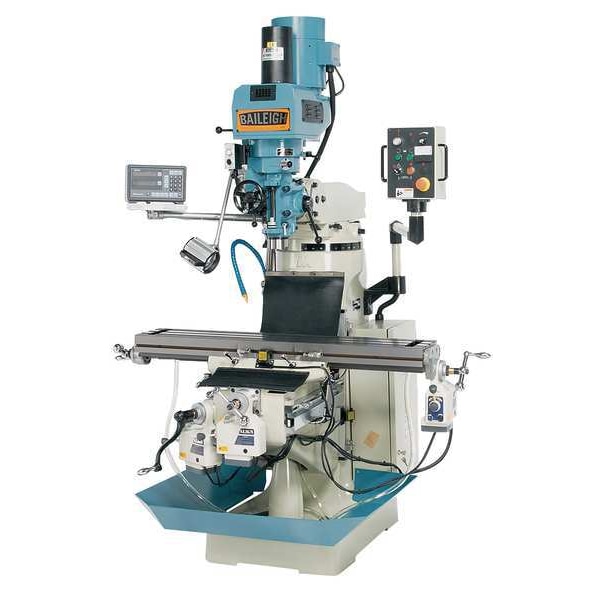

Baileigh Industrial Vertical Mill, 220V, 3 HP VM-949-3 - main

Vertical Mill, 220V, 3 HP

  • Mfr # VM-949-3

  • Zoro # G3499995

product price: $29,357.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Voltage
220V
Motor HP
3
Phase
Three
Longitudinal Travel
12 in
Cross Travel
12.59 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM-949-3
Zoro #
G3499995
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Table Width
49 in
Ram Travel Length
12.5900 in
Table Length
9 in
Spindle Taper Size
NST40
Spindle Travel Length
5 in
Table Work Surface - Depth
9 in
T-Slot Width
5/8 in
Table Work Surface - Width
49 in

Details

Voltage
220V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
12 in
Cross Travel
12.59 in
Features
Variable Speed, inverter driven. Power Draw Bar, Power feeds on x,y,z axis, digital Readout
Hz
60
Spindle Taper
NT40
Includes
Air Draw Bar, Coolant System with Catch Tray
Forward Head Tilt
45 Degrees
Table Load Capacity
440 lb
Right-Hand Head Tilt
90 Degrees
Min. Spindle Speed
60 RPM
Min. Spindle to Column Distance
8-3/8 in
Min. Spindle to Table Distance
2.2400 in
Backward Head Tilt Adjustment
45 Degrees
Horsepower
3 hp
Left-Hand Head Tilt
90 Degrees
Max. Spindle Speed
4,200 RPM
Includes Digital Readout
Digital Readout Included
Spindle Speed - Maximum
4,200 RPM
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed, Z-Axis Powerfeed
Series
VM-949
Head Tilt - Backward
45 Degrees
Number of Spindle Speeds
Variable
Maximum Cross Travel
12 9/16 in
Maximum Longitudinal Travel
12 in
Head Swivel - Left
90 Degrees
Maximum Ram Travel
12 9/16 in
Digital Readout Included
Mitutoyo
Spindle to Column Distance - Minimum
8 3/8 in
Maximum Spindle Travel
5 in
Spindle Speed - Minimum
60 RPM
Head Tilt - Forward
45 Degrees
Drawbar Style
Air-Powered

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 440 lb, Phase Three, Voltage 220V, Longitudinal Travel 12 in, Cross Travel 12.59 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
