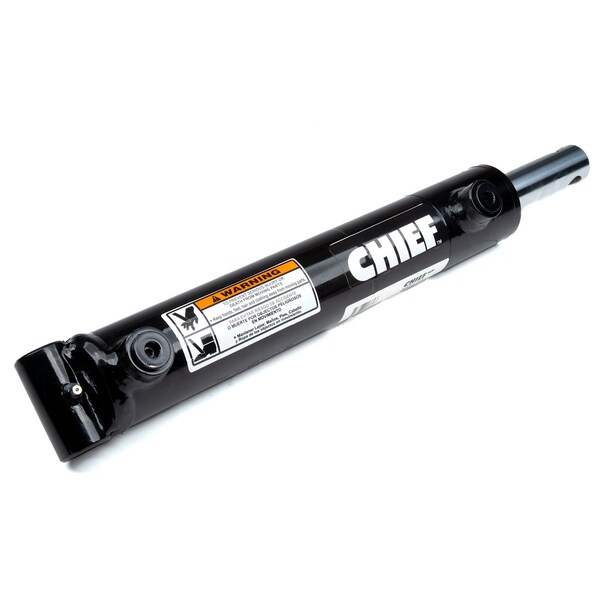

Welded Hydraulic Cylinder: 3.5 Bore x 36 Stroke - 1.75 Rod (Discontinued)

The Chief WP 3000 PSI is a very versatile cylinder. The rod end comes pwith a drilled pin-hole and can easily be customized to fit your rod end of choice. Base end has a welded cross-tube with grease zerk. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, Metal fabricating and waste/recycling equipment. SAE 8 O-ring ports for easy hookup. Every Chief WP cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability. WP cylinders have a 3,000 PSI operating range and 3 year limited warranty. Painted black, available in custom colors. Intended Use: Double-acting applications • Piston: Ductile iron with wear ring • Gland: Ductile iron, screw-in design with wear ring • Tube: Precision honed steel • Rod: Hard chrome plated • Rod End Mount: Rod eye drilled • Base End Mount: Steel cross-tube with grease zerk • Tube Seal: Buna O-ring with Polytemp hytrel backup • Rod Seal: Deep polypak with B lip design • Rod Wiper: Urethane, snap-in • Piston Seal: Hallite 755 provides prolonged wear resistance with wear rimg • All Seals: Manufactured to US specifications • Ports: SAE O-rings • Paint: Black. Custom colors are available. • Packaging: Individually (more...)
