  6. Capacitor-Start AC Induction Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

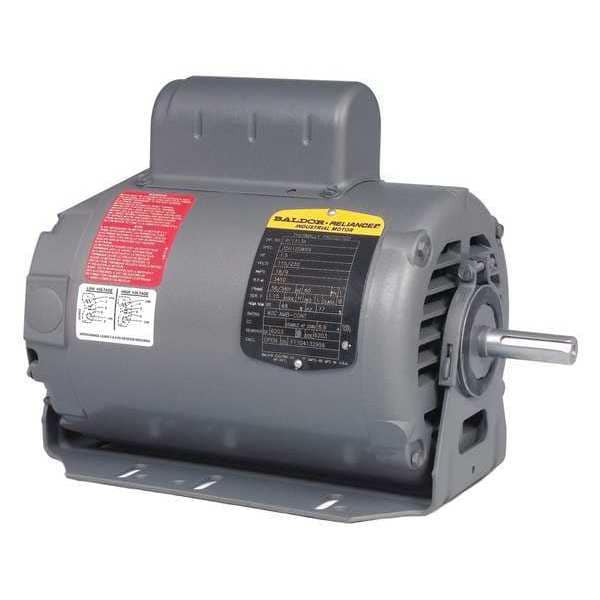

Baldor-Reliance Capacitor-Start AC Induction Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56 Frame, 1,725 Nameplate RPM RL1304A - main

Capacitor-Start AC Induction Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

  • Mfr # RL1304A

  • Zoro # G7063537

product price:  $572.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Resilient Base
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RL1304A
Zoro #
G7063537
UPC #
781568120675
Country of Origin
United States

Dimensions

Overall Length
11 9/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
9 11/16 in

Details

Item
Direct Drive Blower Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Resilient Base
HP
1/2
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
115/230V AC
Motor Application
Blower; Fan
Nameplate RPM
1725 rpm
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Full Load Amps
4.2/4.8/8.4 A
Inverter Rated
No
Hz
60 Hz
Phase
Single
Nominal Efficiency
62 %
NEMA Design
N
Ins. Class
B
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Part Winding Start Capable
Yes
Usable @ 208V
Yes

Description

Direct Drive Blower Motor, Capacitor-Start Motor Design, Open Dripproof Motor Enclosure Design, 1/2 HP, 1725 rpm Nameplate RPM, Voltage 115/230V AC, 4.2/4.8/8.4 A Full Load Amps, 60 Hz Hz, Single Phase, 56 Frame, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Ins. Class B, No. of Speeds 1, Motor Mounting Type Resilient Base, Motor Bearings Ball, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 9 11/16 in, Overall Length 11 9/16 in, Shaft Dia. 5/8 in
