  11. Split-Phase Belt Drive Motor, 3/4 HP, 56H Frame, 115V AC Voltage, 1,725 Nameplate RPM
Shop All Belt Drive Motors
Dayton

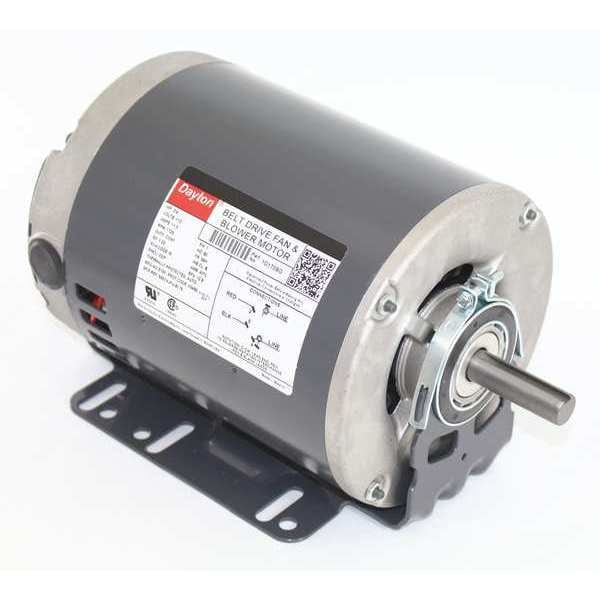

Split-Phase Belt Drive Motor, 3/4 HP, 56H Frame, 115V AC Voltage, 1,725 Nameplate RPM

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
See full product details
$294.72
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #1D170 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115V AC
  • Frame: 56H
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.25
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Max. Ambient Temp.: 40 Degrees C
  • Standards: UL Component Recognition (E37403) and CSA Certification (258501)
  • Motor Shaft Rotation: CW/CCW
  • Motor Frame Material: Rolled Steel
  • Full Load Amps: 11.3
  • Shaft Length: 1 7/8 in
  • Resilient Ring Dia.: 2 1/4 in
  • Motor Bearings: Ball
  • Nominal Efficiency: 60.3 %
  • Includes: Shaft Key
  • Motor Shaft Design: Keyed
  • Ins. Class: B
  • Motor Mounting Position: All Angle
  • Body Dia.: 6 3/8 in
  • Duty: Continuous
  • Ring to Ring Center: 8 15/16 in
  • Hz: 60
  • Length Less Shaft: 9 7/16 in
  • Overall Length: 11 5/16 in
  • Frame Material: Rolled steel
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Multiple

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 11.3 Full Load Amps, 56H Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in
