  6. Capacitor-Start Fan Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56Z Frame, 1,100 Nameplate RPM

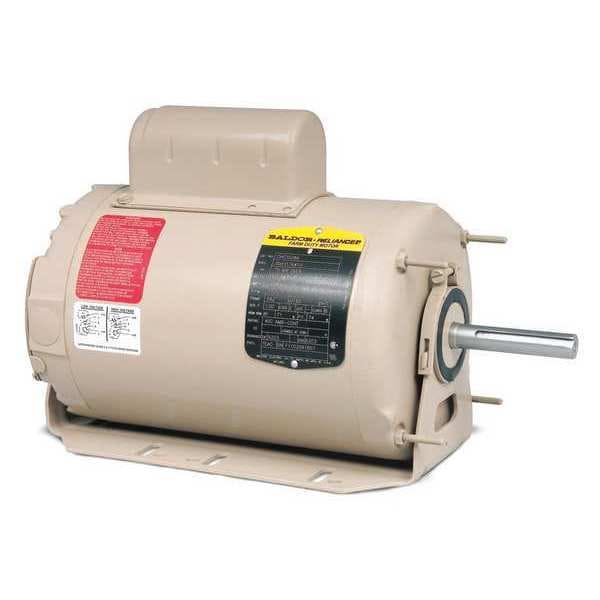

Baldor-Reliance Capacitor-Start Fan Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56Z Frame, 1,100 Nameplate RPM CHC3525A - main

Capacitor-Start Fan Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56Z Frame, 1,100 Nameplate RPM

  • Mfr # CHC3525A

  • Zoro # G7143775

product price:  $724.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Resilient Ring
HP
1/2 hp
RPM Range
0-1,100
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CHC3525A
Zoro #
G7143775
UPC #
781568121450
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
2 yr
Length Less Shaft
10 1/2 in
Shaft Dia.
5/8 in
Shaft Length
3 in
Overall Length
13 1/2 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Resilient Ring
HP
1/2 hp
RPM Range
0-1,100
Voltage
115/230V AC
Frame
56Z
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Application
Nameplate RPM
1,200 RPM
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA, UR
CC Number
CC031A
Ins. Class
F
Nominal Efficiency
70 %
Phase
Single
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Inverter Rated
No
Full Load Amps
2.6 A
Motor Bearings
Ball
Duty Cycle
Continuous
Part Winding Start Capable
Yes
Usable @ 208V
Not Usable at 208V
Weight
40 lb
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
2.6 A

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.6 A, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Air-Over, Motor Shaft Rotation CW/CCW, Motor Mounting Type Resilient Ring
