Shop All Permanent Split Capacitor Blower Motors
Dayton

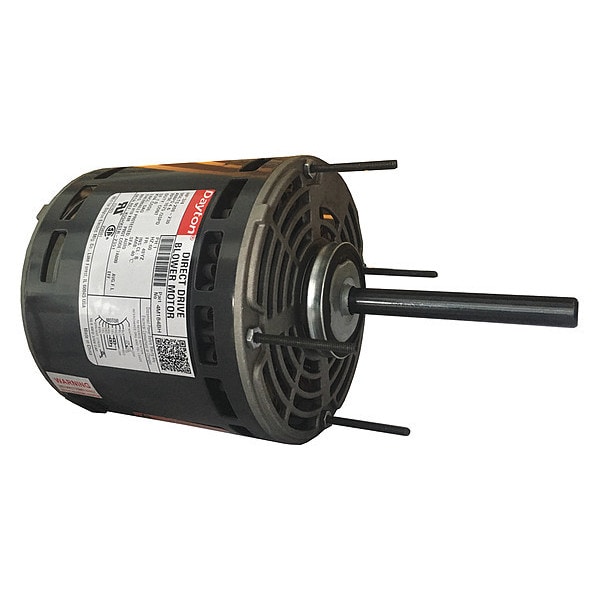

Motor, 3/4hp, D/D Blower

product price: $192.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Mounting Type Stud
  • Shaft Dia. 1/2 in
  • Application Blowers, Fans and Air Circulators
  • Frame 48YZ
  • Motor Thermal Protection Auto
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Shaft Length 4 in
Bolt Circle Dia. 5 1/8 in
Resilient Ring Dia. 2 1/4 in
Body Dia. 5 5/8 in
Overall Length 10 7/16 in
Length Less Shaft 6 7/16 in
Stud Size 8-32 NC 2A Thread x 1 5/8 in

Details

Motor Mounting Type Stud
Application Blowers, Fans and Air Circulators
Frame 48YZ
Motor Thermal Protection Auto
Motor Shaft Rotation CW/CCW
Motor Shaft Design Flat
Item Direct Drive Blower Motor
Hz 60 Hz
Motor Service Factor 1
Max. Ambient Temp. 40 Degrees C
Voltage 208-230V AC
Capacitor Required 2MDV7
Includes Kit for 2-1/2 in Hub Ring Assembly
Voltage Compatibility 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Design Permanent Split Capacitor
Motor Sub Application Direct Drive
Phase Single
Ins. Class B
Full Load Amps 4.6 A
HP 3/4
Nameplate RPM 1,075
Motor Mounting Position All Angle
Nominal Efficiency 60.7 %
Standards CSA Certification (258501), UL Recognition (E47479)
Motor Bearings Sleeve
Motor Enclosure Design Open Air-Over
RPM Range 1,001-1,100
Ring to Ring Center 6 in
Duty Continuous
No. of Speeds 3
Motor Application HVAC/R
Duty Cycle Continuous
Mounting Stud
Number of Speeds 3

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 4.6 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle

Restrictions
