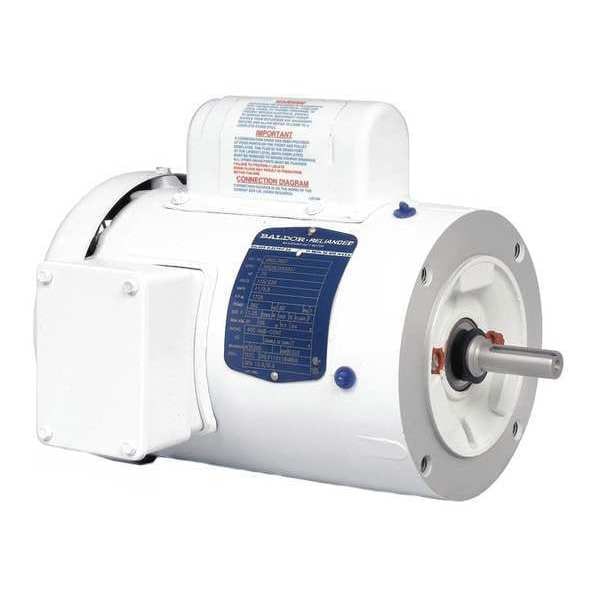

Capacitor-Start Washdown Motor, 1/2 hp HP, 56C Frame, 115/230V AC Voltage, 1,740 RPM Nameplate RPM
Mfr # VWDL3504
Zoro # G8052786
product price:Â $771.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
VWDL3504
Zoro #
G8052786
UPC #
781568155035
Country of Origin
United States
Dimensions
Shaft Length
1 7/8 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
6.6 in
Shaft Dia.
5/8 in
Length Less Shaft
10 3/8 in
Overall Length
12 1/4 in
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.5 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Vertical
