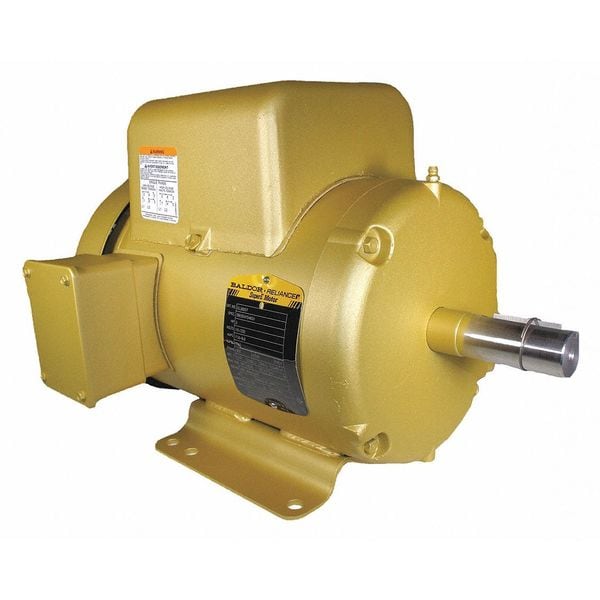

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame
Mfr # EL3605T
Zoro # G8030547
product price: $1,606.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EL3605T
Zoro #
G8030547
UPC #
781568138649
Country of Origin
United States
Dimensions
Shaft Dia.
1 1/8 in
Length Less Shaft
13 13/16 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Overall Length
16 9/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
