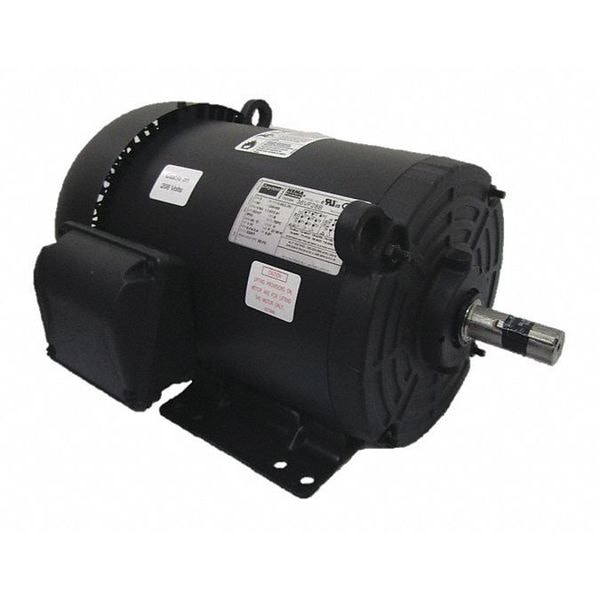

Three-Phase General Purpose Motor, 3 HP, 182/4T Frame, 230/460V AC Voltage, 1765 Nameplate RPM

The DAYTON - 36VF28 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across numerous sectors from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 36VF28 General Purpose Motor:

• CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
• Duty Cycle: The motor is designed for continuous operation, which refers to the ability to operate continuously under specific conditions.
• Frame: The frame size and design conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: Under full load conditions, the motor draws a maximum current of 7.6/3.8 A, indicating power supply requirements.
• Green Certification or Other Recognition: NEMA Premium Rated indicating that it meets certain environmental and energy efficiency standards
• Inverter Rated: Suitable for use with a variable frequency drive, which can provide control over speed and torque.
• Motor Enclosure Design: Totally enclosed fan-cooled design protects internal components from environmental factors while determining its cooling method
• Motor Mounting Position & Type: Compatible with horizontal installation using a rigid base mounting style
• Nameplate RPM & No. Of Speeds : Has an operational speed of 1765 RPM under full load conditions with one distinct speed setting
