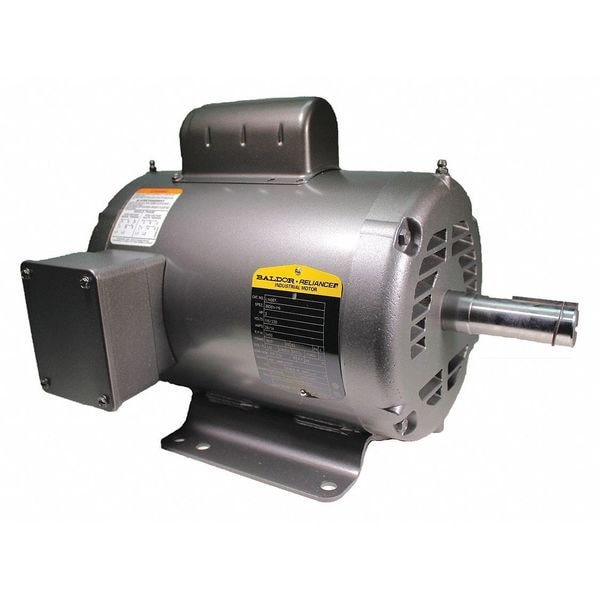

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182T Frame
Mfr # L1406T
Zoro # G8214561
product price: $1,228.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
3 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L1406T
Zoro #
G8214561
UPC #
781568101599
Country of Origin
United States
Dimensions
Length Less Shaft
12 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Overall Length
15 in
Manufacturers Warranty Length
2 yr
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.0 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
