  11. AC Gearmotor, 3.3 in-lb Max. Torque, 368 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
Shop All AC Gear Motors
Dayton

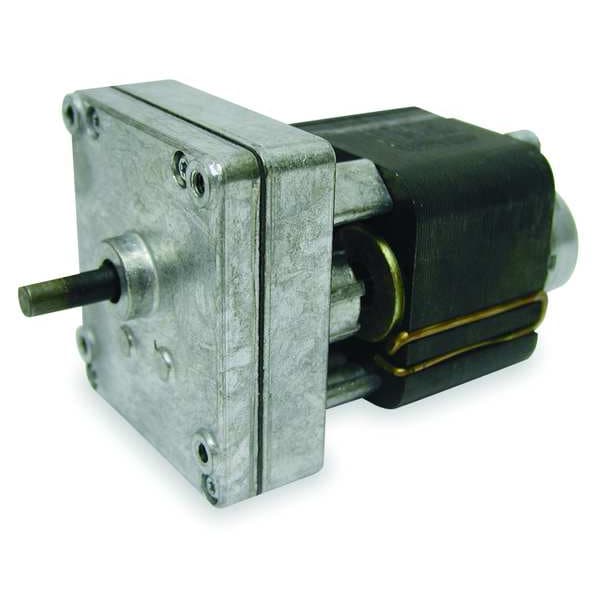

AC Gearmotor, 3.3 in-lb Max. Torque, 368 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

product price: $107.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Gearmotor Voltage 115V AC
  • Gearmotor Phase 1
  • Gearmotor Type AC Gearmotor
  • Max. Torque 3.3 in-lb
  • Gearmotor Shaft Type Single
See all product information

Product Information

Dimensions

Length Less Shaft 4.88 in
Dimension A 4.31 in
Shaft Dia. (Dimension U) 5/16"
Shaft Length (Dimension V) 0.75"
Dimension B 1.17 in
Output Shaft Length 3/4 in
Mount Hole Center-to-Center Width 2.38 in
Mount Hole Center-to-Center Length 2.38 in
Overall Height 2.92 in
Output Shaft Diameter 5/16 in
Overall Width 3.16 in
Output Shaft Height 1.41 in

Details

Item AC Gearmotor
Gearmotor Voltage 115V AC
Gearmotor Phase 1
Gearmotor Type AC Gearmotor
Max. Torque 3.3 in-lb
Gearmotor Shaft Type Single
Gearmotor Shaft Orientation Parallel
Nameplate RPM 368 RPM
Gearmotor Enclosure Open
Gearmotor Rotation CW
Gearmotor Brake Type None
Gearmotor Mounting Position All Angle
Full Load Amps 1.4
Standards UL Recognized
Input HP 1/42 hp
Motor Type Shaded Pole
Gears All Spur Gears
Phase Single
Enclosure Open
Thermal Protection Auto
Hz 60/50 Hz
RPM Range 251 to 500
Max. Ambient Temp. 40 Degrees C
Rotation CW
Mounting All Position
Housing Die Cast Zinc
Gear Type Spur
Overhung Load 1 lb
Voltage 115
Includes Cooling Fan, Spring Clip
Insulation Class A
Bearings Ball and Porous Bronze on Motor, Needle on Case
Gear Ratio 9:1
No Load RPM 395 RPM
Shaft Orientation Parallel
Application Amusement Devices, Conveyor Toasters, Displays, Food and Restaurant Equipment, Ingredient Motors, Pumps, Security Systems, Valve Actuators, Vending, Water Softeners, X-ray Equipment
Lubrication Grease Filled
Gear Case Material Die Cast Zinc
Seals Gasketed Gear Case
Housing Material Die Cast Zinc
Motor Insulation Class A
Full Load Current 1.4 A
Mount Type Any Position
Overhung Load Capacity 1 ft-lb
Motor Enclosure Open Air-Over
Mounting Orientation Any Angle
Seal Type Gasketed Gear Case
Maximum Ambient Temperature 104 Degrees F
Frequency 50 Hz, 60 Hz
Bearing Type Ball and Porous Bronze on Motor, Needle on Case
Number of Output Shafts 1
Maximum Torque 3.3 in-lb
Brake Type None
Operating Voltage 115V AC
Nameplate Speed 368 RPM
No Load Speed 395 RPM
Input Horsepower 0.252 hp

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 368 RPM, Maximum Torque 3.3 in-lb, Overhung Load Capacity 1 ft-lb, Rotation CW, Output Shaft Height 1.41 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 9:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
