Shop BALDOR-RELIANCE

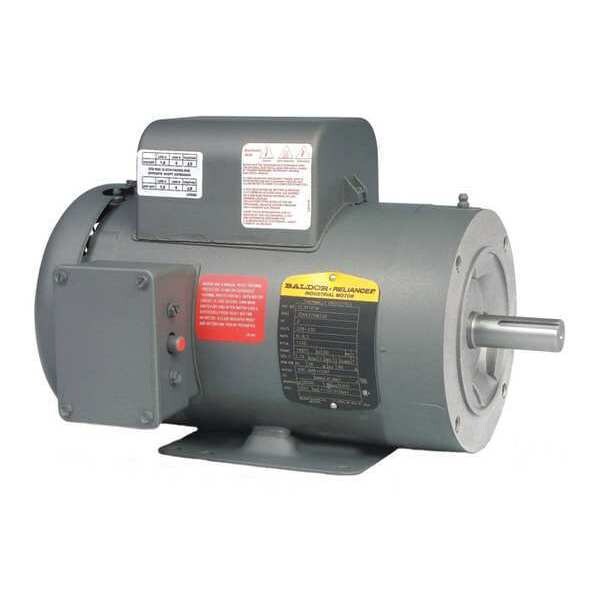

Capacitor-Start/Run Pressure Washer Motor, 1 1/2 hp HP, 56C Frame, 230V AC Voltage

  • Mfr # PCL3513M

  • Zoro # G8052917

product price:
$
872.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage Compatibility
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PCL3513M
Zoro #
G8052917
UPC #
781568112397
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Body Diameter
6.6 in
Frame Size
56C

Details

Item
Pressure Washer Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage Compatibility
230V AC
Voltage
230V AC
Frame
56C
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
6.6 A
Hz
60 Hz
Motor Application
Pressure Washer
Standards
CSA, UR
Nameplate RPM
3,450
Motor Service Factor
1.15
Motor Shaft Rotation
CCW
Motor Bearings
Ball
Ins. Class
B
Ambient Temperature
40 Degrees C
Series
PCL
Frequency
60 Hz
Bearing Type
Ball
Number of Wires
4
Full Load Current @ 60 Hz
6.6 A
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Includes Low Temperature Monitor
Low Temperature Monitor Not Included
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Pump Motor
Application
Pump

Description

Pressure Washer Motor, Capacitor-Start/Run, Totally Enclosed Fan-Cooled, 1 1/2 hp HP, 3,450 Nameplate RPM, 56C Frame, CCW Motor Shaft Rotation, Voltage 230V AC, 6.6 A Full Load Amps, Single Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Bearings Ball, Motor Thermal Protection Manual, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Ins. Class B, Standards CSA, UR
