  11. General Purpose Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 56H Frame

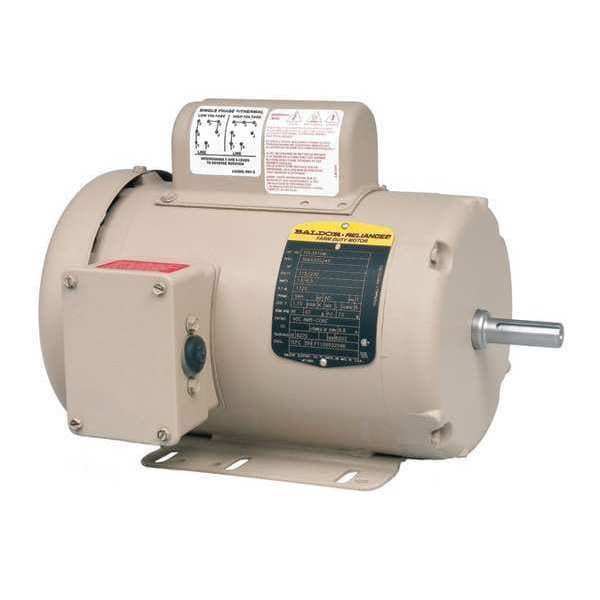

Baldor-Reliance General Purpose Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 56H Frame FDL3514M - main

General Purpose Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 56H Frame

  • Mfr # FDL3514M

  • Zoro # G8052320

product price: $936.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FDL3514M
Zoro #
G8052320
UPC #
781568121894
Country of Origin
United States

Dimensions

Length Less Shaft
11 7/8 in
Overall Length
13 3/4 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32 x 1-3/8 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 1/2
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56H
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Standard
Motor Sub Application
General Purpose
Motor Shaft Rotation
Reversible
Standards
CSA, UR
Full Load Amps
6.2 A
Hz
60 Hz
Finish
Painted
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Bearings
Sealed
Nominal Efficiency
80 %
Capacitor Required
Yes
Ins. Class
F
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Mounting Stud Pattern
5 in x 4.88 in
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
Yes
Weight
49 lb
RPM @ 50Hz
1440
Extended Thru-Bolts
No
Voltage @ 50Hz
115/208-230V AC
HP @ 50Hz
.95
Full Load Amps @ 50Hz
12.4/6.2

Description

General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.2 A, 56H Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
