  11. Agricultural Fan Motor, 3-Phase, 1 HP, 208-230/460V AC, 825 Nameplate RPM, 56 Frame
Shop All AC Farm Duty Motors
No Product Image Available
Dayton

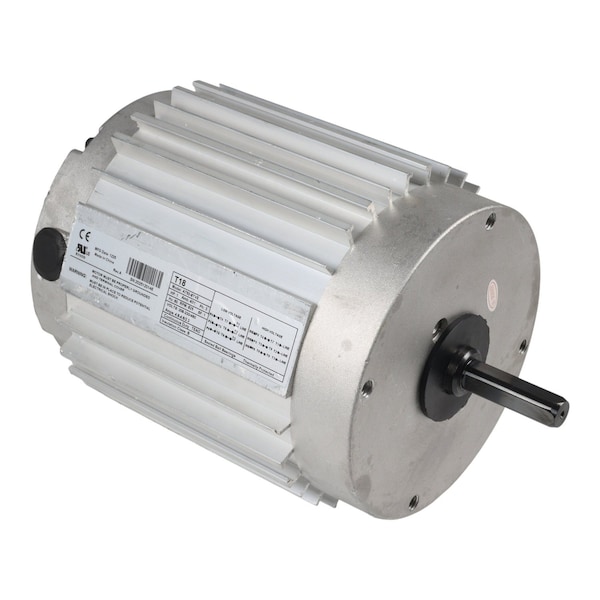

Agricultural Fan Motor, 3-Phase, 1 HP, 208-230/460V AC, 825 Nameplate RPM, 56 Frame

product price: $564.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1
  • RPM Range 0-1,000
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Overall Length 11 5/8 in
Length Less Shaft 8 15/16 in
Shaft Dia. 5/8 in
Shaft Length 2 11/16 in

Details

Item Agricultural Fan Motor
Motor Design 3-Phase
Phase Three
HP 1
RPM Range 0-1,000
Voltage 208-230/460V AC
Frame 56
Motor Service Factor 1
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Air-Over
Nameplate RPM 825
Motor Application Farm Duty
Motor Frame Material Cast Aluminum
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Sub Application Direct Drive Fan/Blower
Motor Shaft Design Double-Flat
Motor Shaft Rotation CW
Standards CE Certified, UL Recognized US and Canada
Duty Continuous
Nominal Efficiency 74 %
Frame Material Aluminum
Motor Bearings Ball
Includes Aluminum Extruded Housing
Hz 60 Hz
Motor Efficiency Group Standard Efficient
Item - Farm Duty Motors Agricultural Fan Motor
Finish Aluminum
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temperature 40 Degrees C
Ins. Class B
Full Load Amps 4.8-4.6/2.3 A
Usable @ 200V No
Usable @ 208V Yes
Duty Cycle Continuous
Max. Ambient Temp. 40 Degrees C
No. of Speeds 1

Description

Agricultural Fan Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.8-4.6/2.3 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Face, Motor Mounting Position Horizontal
