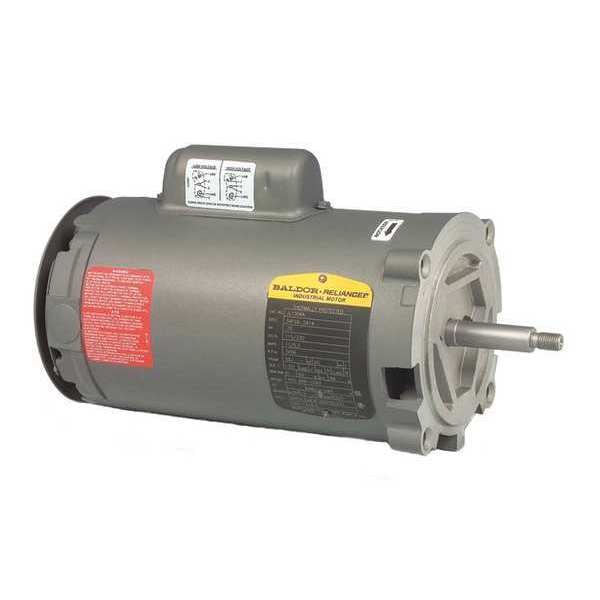

Baldor-Reliance Jet Pump Motor, 1/2 hp, 115/230V AC JL1303A - main

Jet Pump Motor, 1/2 hp, 115/230V AC

  • Mfr # JL1303A

  • Zoro # G8052305

product price: $416.99
/ea
Free Shipping & Returns

Key Features

Overall Length
12 1/2 in
Shaft Length
2 3/8 in
RPM Range
3,001-3,600
Nominal Efficiency
0.6 %
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JL1303A
Zoro #
G8052305
UPC #
781568112779
Country of Origin
United States

Dimensions

Overall Length
12 1/2 in
Shaft Length
2 3/8 in
Shaft Dia.
5/8 in
Body Dia.
5.7 in
Length Less Shaft
10 1/16 in
Height
5 7/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Lead Length
18 in

Details

Item
Jet Pump Motor
RPM Range
3,001-3,600
Nominal Efficiency
0.6 %
Motor Frame Material
Steel
Inverter Rated
No
Conduit Box Position
F1
Nameplate RPM
3,450
Ins. Class
B
Phase
Single
Motor Design
Capacitor-Start
Motor Shaft Design
Threaded
Hz
60 Hz
Motor Enclosure Design
Open Air-Over
Motor Service Factor
1.6
Max. Ambient Temp.
40 Degrees C
Voltage
115/230V AC
Motor Thermal Protection
Auto
NEMA Design
N
Duty Cycle
Continuous
Full Load Amps
3.7/7.4
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Number of Wires
5
No. of Speeds
1
Frame
56J
HP
1/2
Motor Mounting Position
Vertical
Motor Bearings
Ball
Standards
CSA, UR
Overload Relay Amp Setting
20
Overload Relay Required
Yes
Finish
Matte
Part Winding Start Capable
Yes
Includes
None
Motor Application
Pump
Conduit Box Location
Exterior
Stator Type
Open
Diaphragm Type
None
Usable @ 208V
Yes
Inverter Rating
Non Inverter
Motor Shaft Rotation
CCW
Overload Relay Max. Amp Setting
20 A
Regreasable Bearings
Regreasable Bearings
Max. SF Amps
3.7/7.4
Weight
26 lb
CC Number
CC010A
Bearing Protection
Electrically Isolated
Usable @ 200V
Yes
Motor Sub Application
Pool and Spa Pump
Shaft Material
Steel

Description

Jet Pump Motor, Bearing Protection Electrically Isolated, Body Dia. 5.7 in, Bolt Circle Dia. 5 7/8 in, CC Number CC010A, Conduit Box Location Exterior, Conduit Box Position F1, Diaphragm Type None, Duty Cycle Continuous, Finish Matte, Frame 56J, Hz 60 Hz, Full Load Amps 3.7/7.4, Height 5 7/8 in, HP 1/2, Includes None, Ins. Class B, Inverter Rated No, Inverter Rating Non Inverter, Lead Length 18 in, Length Less Shaft 10 1/16 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C
