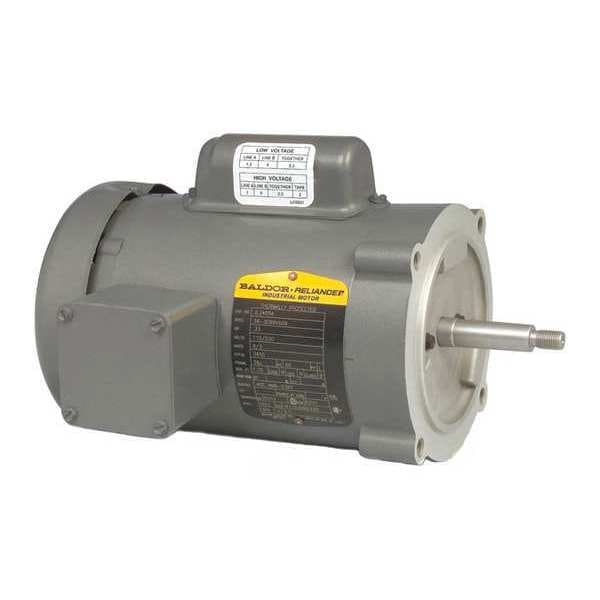

Baldor-Reliance Jet Pump Motor, 3/4 hp, 230V AC JL3506A - main

Jet Pump Motor, 3/4 hp, 230V AC

  • Mfr # JL3506A

  • Zoro # G8052366

product price: $774.99
/ea
Free Shipping & Returns

Key Features

Body Dia.
5.7 in
Full Load Amps
5.4
Motor Mounting Position
Vertical
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Duty Cycle
Continuous
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JL3506A
Zoro #
G8052366
UPC #
781568217986
Country of Origin
United States

Dimensions

Body Dia.
5.7 in
Length Less Shaft
10 7/16 in
Shaft Dia.
5/8 in
Shaft Length
2 3/8 in
Bolt Circle Dia.
5 22/25 in
Overall Length
12 7/8 in
Height
5 13/16 in
Manufacturers Warranty Length
1 yr
Lead Length
18 in

Details

Item
Jet Pump Motor
Full Load Amps
5.4
Motor Mounting Position
Vertical
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Duty Cycle
Continuous
Conduit Box Position
F1
Standards
CSA, UR
Phase
Single
Frame
56J
Voltage
230V AC
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Usable @ 208V
Yes
Nominal Efficiency
0.6 %
No. of Speeds
1
Inverter Rated
No
NEMA Design
N
Number of Wires
4
HP
3/4
Motor Service Factor
1.5
Motor Shaft Design
Threaded
Motor Design
Capacitor-Start
Hz
60 Hz
Motor Frame Material
Steel
RPM Range
3,001-3,600
Motor Thermal Protection
Auto
Nameplate RPM
3,450
Ins. Class
B
Motor Bearings
Ball
Regreasable Bearings
Regreasable Bearings
Bearing Protection
Electrically Isolated
Includes
None
Weight
29 lb
Overload Relay Required
Yes
Motor Shaft Rotation
CCW
Motor Mounting Type
Rigid Base
Shaft Material
Steel
Overload Relay Amp Setting
40
Stator Type
Open
Conduit Box Location
Exterior
Overload Relay Max. Amp Setting
40 A
Motor Application
Pump
Diaphragm Type
None
Motor Sub Application
Pool and Spa Pump
Inverter Rating
Non Inverter
Finish
Matte
CC Number
CC015A
Max. SF Amps
7
Usable @ 200V
Yes
Part Winding Start Capable
Yes

Description

Jet Pump Motor, Bearing Protection Electrically Isolated, Body Dia. 5.7 in, Bolt Circle Dia. 5 22/25 in, CC Number CC015A, Conduit Box Location Exterior, Conduit Box Position F1, Diaphragm Type None, Duty Cycle Continuous, Finish Matte, Frame 56J, Hz 60 Hz, Full Load Amps 5.4, Height 5 13/16 in, HP 3/4, Includes None, Ins. Class B, Inverter Rated No, Inverter Rating Non Inverter, Lead Length 18 in, Length Less Shaft 10 7/16 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C
