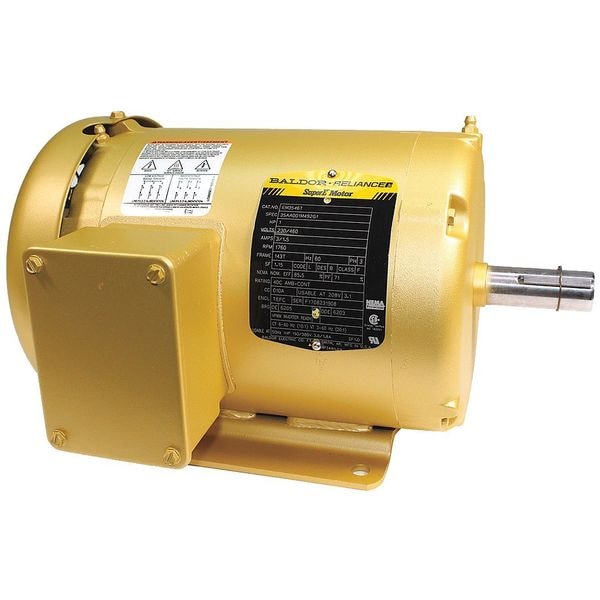

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # EM3546T

  • Zoro # G7538431

product price:
$
809.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3546T
Zoro #
G7538431
UPC #
781568138861
Country of Origin
United States

Dimensions

Length Less Shaft
10 1/16 in
Overall Length
12 5/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
7/8 in
Frame Size
143T
Wire Rope Length
12 5/16 in
Length
12 5/16 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
Frame
143T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Weight
40 lb
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Frequency
60 Hz
Full Load Current @ 60 Hz
3/1.5 A
Bearing Type
Ball
Product Type
General Purpose Motor
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
All Angle
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Inverter Rating
Inverter Rated
NEMA Design Class
B
Application
General Purpose
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,425 RPM

Description

The BALDOR-RELIANCE - EM3546T is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It efficiently converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across numerous sectors such as manufacturing lines and HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3546T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for a continuous duty cycle, which may contribute to its performance in industrial applications.
  • Frame: The 143T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility.
  • Full Load Amps: Operating at full capacity, this motor draws a maximum current of 3/1.5 A crucial for determining power supply requirements.
  • NEMA Premium(R) Rated: Acknowledged for meeting environmental and energy efficiency standards making it an eco-friendly choice.
  • Inverter Rated: Suitable for use with a variable frequency drive which could allow some level of control over speed and torque
  • Motor Bearings: Equipped with ball bearings that are intended to facilitate smoother operation under different load conditions
  • Motor Enclosure Design: Features a totally enclosed fan-cooled design that aims to shield internal components from environmental factors and assist with cooling
