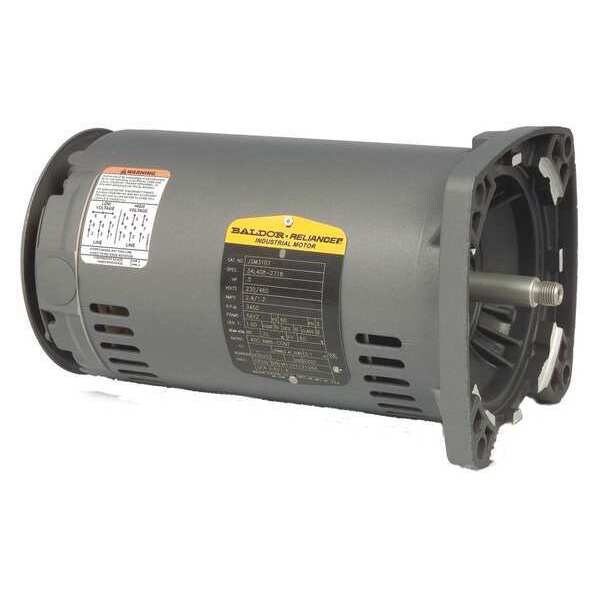

Baldor-Reliance Three-Phase AC Induction Motor, 1 1/2 HP, 56YZ Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM JSM3120 - main

Three-Phase AC Induction Motor, 1 1/2 HP, 56YZ Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # JSM3120

  • Zoro # G7067089

product price:  $691.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Full Load Amps
2/4/4.7 A
Frame
56YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
JSM3120
Zoro #
G7067089
UPC #
781568206379
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/4 in
Overall Length
12 3/4 in
Shaft Dia.
5/8 in
Shaft Length
1/2 in

Details

Item
AC Induction Motor
HP
1 1/2
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Full Load Amps
2/4/4.7 A
Frame
56YZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Threaded
Nominal Efficiency
81.5 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Motor Thermal Protection
None
NEMA Design
B
Inverter Rated
No
Duty Cycle
Continuous
Usable @ 208V
Yes
Part Winding Start Capable
No

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3,450, Frame 56YZ, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2/4/4.7 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, 3,001-3,600, CSA, RoHS Compliant, UR
