Shop BALDOR-RELIANCE

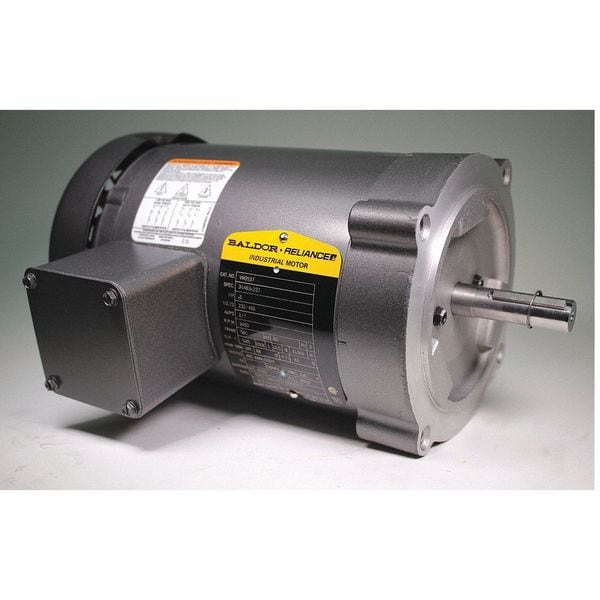

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # VM3537

  • Zoro # G7949767

product price:  $508.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.0/1.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VM3537
Zoro #
G7949767
UPC #
781568109540
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
11 3/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
2 yr
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
11 3/8 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.0/1.0 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
68 %
Standards
CSA, UR
CC Number
CC031A
Footnotes
30
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
No
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Weight
19 lb
Usable @ 200V
Not Usable at 200V
NEMA Design Class
B
Product Type
General Purpose Motor
Number of Speeds
1
Nameplate RPM @ 50 Hz
975 RPM
Inverter Rating
Not Inverter Rated
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Full Load Current @ 60 Hz
2.0/1.0 A
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.25
Manufacturers Warranty
2 yr
Shaft Design
Keyed
Application
General Purpose
Insulation Class
B
Frequency
60 Hz
Frame Material
Steel

Description

The BALDOR-RELIANCE - VM3537 is a 3-phase AC general purpose motor. It's designed to convert electrical energy into mechanical energy, making it suitable for power transmission and pneumatics applications in industrial and commercial settings. This versatile motor can be utilized across various sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - VM3537 Motor:

  • CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial in certain industrial applications.
  • Frame: Its 56C frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: When operating at full capacity, this motor is expected to draw a maximum current of 2.0/1.0 A; it's important to consider these values when determining power supply requirements.
  • NEMA Premium(R) Rated: This green certification acknowledges that the motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Horsepower (HP): The horsepower rating provides an indication of the potential performance capability in various industrial applications.
  • Motor Enclosure Design: The totally enclosed fan-cooled design aims to protect internal components from environmental factors like dust and water while influencing its cooling method
