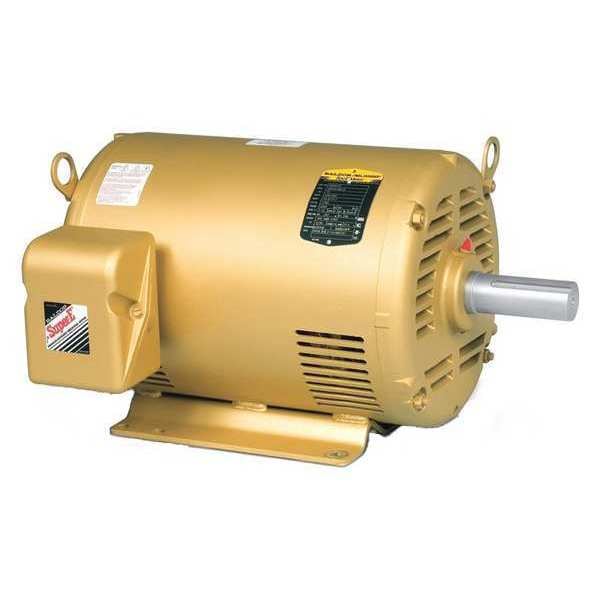

Three-Phase AC Induction Motor, 10 HP, 215T Frame, 575V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EM3313T-5

  • Zoro # G7084406

product price:  $1,998.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
1,770
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3313T-5
Zoro #
G7084406
UPC #
781568118665
Country of Origin
United States

Dimensions

Length Less Shaft
14 1/16 in
Overall Length
17 7/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Shaft Diameter
1 3/8 in
Frame Size
215T

Details

Item
AC Induction Motor
HP
10
Nameplate RPM
1,770
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
1.0 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
575V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
91.7 %
Standards
CSA EEV, NEMA Premium, RoHS Compliant, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
B
Part Winding Start Capable
No
Duty Cycle
Continuous
Removable Base
Regreasable
Nameplate RPM @ 50 Hz
1,460/1,465/1,435/1,440/1,450 RPM
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
1.0 A
Frequency
60 Hz
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Frame Material
Steel
Bearing Lubrication Type
Regreasable
Mounting Position
Horizontal
NEMA Design Class
B
Insulation Class
F
Inverter Rating
Inverter Rated
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Application
General Purpose

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 215T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,701-1,800, CSA EEV, NEMA Premium, RoHS Compliant, UR
