Century

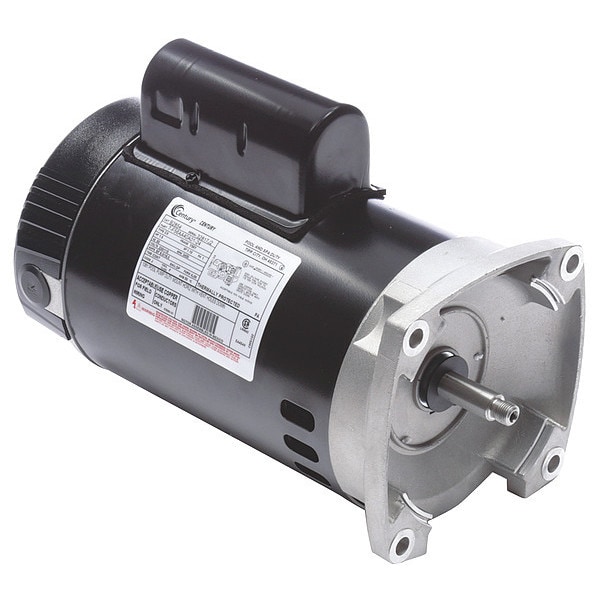

Pool and Spa Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56Y Frame, 3,450 Nameplate RPM

Century Pool and Spa Pump Motor,  Permanent Split Capacitor,  1 1/2 HP,  56Y Frame,  3,450 Nameplate RPM B2854V1
Tap to zoom
Hover or click to zoom
$249.99
  • Item: Pool and Spa Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $249.99

Century #B2854V1 Specifications

  • Item: Pool and Spa Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 1 1/2
  • RPM Range: 3,001-3,600
  • Motor Service Factor: 1.1
  • Nameplate RPM: 3,450
  • Frame: 56Y
  • Motor Shaft Rotation: CCWSE
  • Phase: Single
  • Voltage: 115/230V AC
  • Full Load Amps: 16.0/8.0
  • Motor Mounting Type: Face
  • Hz: 60
  • Motor Efficiency Group: Standard Efficient
  • Motor Bearings: Ball
  • Shaft: Threaded 1/2-20 UNF-2A RH (External) and 1/4-20 UNC-2B LH (Internal)
  • Standards: CSA, UL
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Finish: Black
  • Motor Thermal Protection: Auto
  • Motor Application: Pump
  • Motor Sub Application: Pool and Spa Pump
  • Motor Flange Material: Aluminum
  • Ambient Temperature: 50 Degrees C
  • Shaft Dia.: 5/8 in
  • Shaft Material: Stainless Steel
  • Shaft Length: 7/16 in
  • Ins. Class: F
  • Max. Ambient Temp.: 50 Degrees C
  • Weight: 26.3 lb
  • Usable @ 208V: No
  • No. of Speeds: 1
  • Usable @ 200V: No
  • Application: Pool and Spa Pumps
  • Country of Origin (subject to change): China

Description

Pool and Spa Pump Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 16.0/8.0, 56Y Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
