Shop BALDOR-RELIANCE

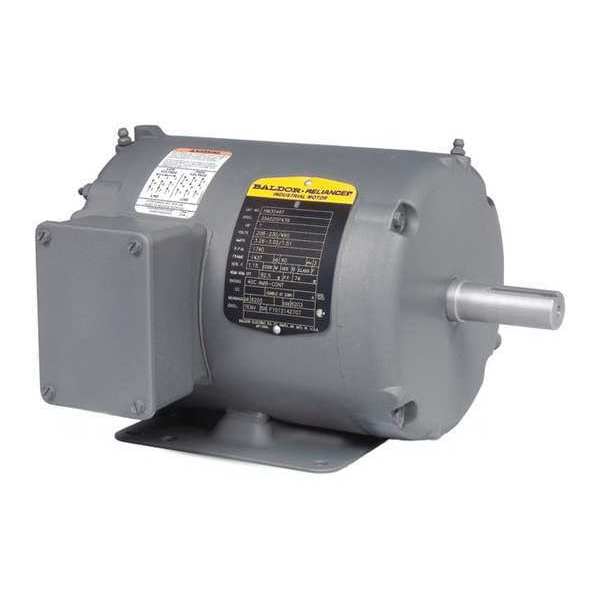

Three-Phase AC Induction Motor, 1/3 HP, 48 Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # M3457

  • Zoro # G8052451

product price:  $373.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
0.70/1.4/1.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M3457
Zoro #
G8052451
UPC #
781568101827
Country of Origin
United States

Dimensions

Length Less Shaft
8 1/8 in
Overall Length
9 5/8 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Frame Size
48
Shaft Diameter
1/2 in
Wire Rope Length
9 5/8 in

Details

Item
AC Induction Motor
HP
1/3
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
0.70/1.4/1.6 A
Frame
48
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
72 %
Standards
CSA, UR
Motor Thermal Protection
None
Inverter Rated
No
NEMA Design
B
Usable @ 208V
Usable at 208V
Part Winding Start Capable
No
Duty Cycle
Continuous
Inverter Rating
Not Inverter Rated
Nameplate Voltage @ 50 Hz
190/380V AC
Frequency
60 Hz
Full Load Current @ 60 Hz
0.70/1.4/1.6 A
Number of Speeds
1
Bearing Type
Ball
Application
General Purpose
Frame Material
Steel
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.35
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
B
Nameplate RPM @ 50 Hz
1,465 RPM
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C

Description

The BALDOR-RELIANCE - M3457 is a 3-Phase AC Induction Motor designed for general purpose use in various industrial applications. This motor converts electrical energy into mechanical energy through electromagnetic induction, making it an essential component in power transmission and pneumatics systems where rotational motion is required.

Key Features of the BALDOR-RELIANCE - M3457 3-Phase AC Induction Motor:

  • Duty Cycle: The motor is designed for a continuous duty cycle, which may vary based on the specific requirements of industrial applications.
  • Frame: With a frame size of 48, this motor conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: It operates at full load amps of 0.70/1.4/1.6 A, crucial for determining power supply requirements and ensuring safe operation.
  • Horsepower (HP): With an HP rating of 45660, this motor is intended for use in heavy-duty operations.
  • Insulation Class: Classified as Insulation Class B, the insulation's performance may vary depending on usage and environmental conditions.
  • Bearings: Equipped with ball bearings intended to minimize friction between moving parts. Actual performance may depend on load conditions.
  • NEMA Design: Conforms to NEMA Design B which ensures consistent performance across various industrial applications
  • Voltage Compatibility: Rated for operation within specified voltage ranges from 200V to 460V AC. Efficiency depends on actual operating conditions.
