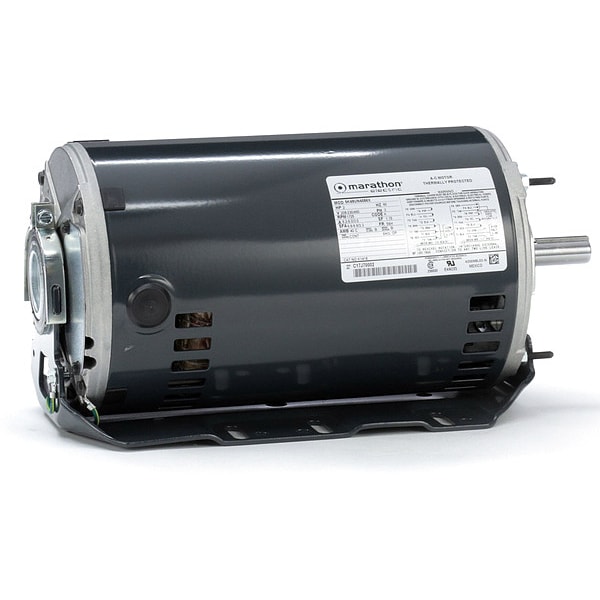

Condenser Fan Motor, 2 HP, 56H Frame

  • Mfr # 5K49UN4086X

  • Zoro # G7277693

product price:
$
429.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K49UN4086X
Zoro #
G7277693
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Resilient Ring Dia.
2 1/2 in
Overall Length
13 15/16 in
Body Dia.
6 7/16 in
Length Less Shaft
11 15/16 in
Bolt Circle Dia.
5-15/16"
Lead Length
5"
Stud Size
#10-32
Manufacturers Warranty Length
1 yr
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
5/8 in
Frame Size
56H
Body Diameter
6.4 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56H
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
None
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Application
Fan/Blower
Full Load Amps
6.0-6.0,3.0 A
Ins. Class
B
Standards
CSA (MC236833), UL (E14133)
Hz
60 Hz
Motor Shaft Design
Flat
Motor Service Factor
1.15
Motor Bearings
Ball
Nominal Efficiency
81.9 %
Ring to Ring Center
11 9/16 in
Stud Quantity
4
Capacitor Required
Capacitor Not Required
Duty
Continuous
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Usable @ 208V
Yes
Weight
39 lb
Usable @ 200V
No
Motor Frame Material
Steel
Duty Cycle
Continuous
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Number of Speeds
1
Shaft Design
Flat
Insulation Class
B
Mounting Position
Horizontal
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
6.0-6.0/3.0 A
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Fan and Blower Motor
Drive Type
Belt Drive
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 6.0-6.0/3.0 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
