Shop BALDOR-RELIANCE

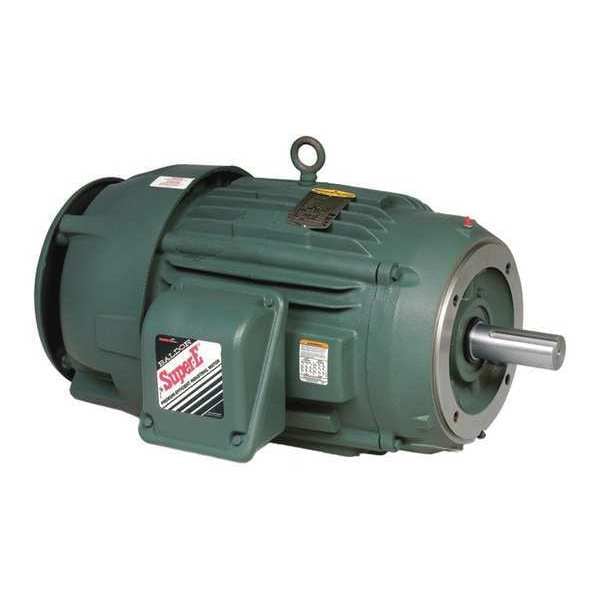

Three-Phase Chemical Processing Motor, 1 HP, 143TC Frame, 208-230/460V Voltage

  • Mfr # VECP3581T

  • Zoro # G8053081

product price:  $1,358.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,770 rpm
Voltage
208-230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VECP3581T
Zoro #
G8053081
UPC #
781568386712
Country of Origin
United States

Dimensions

Length Less Shaft
12 7/16 in
Overall Length
14 9/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Frame Size
143TC
Shaft Diameter
7/8 in

Details

Item
Chemical Processing Motor
HP
1
Nameplate RPM
1,770 rpm
Voltage
208-230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.7 A
Frame
143TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Vertical
Motor Shaft Design
Standard
Nominal Efficiency
85.5 %
Standards
CCSA US, CSA EEVN, UR
CC Number
CC010A
Motor Thermal Protection
None
NEMA Design
B
Hazardous Location Class
1 A,B,C,D
Temp. Code
T4
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Hazardous Location Division
Division 2
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Mounting Position
Vertical
Full Load Current @ 60 Hz
1.7 A
Nameplate RPM @ 50 Hz
1,445 RPM
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Bearing Type
Ball
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Cast Iron
NEMA Design Class
B
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
190/380V AC
Insulation Class
F

Description

Chemical Processing Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,770 rpm, Frame 143TC, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1,701-1,800, CCSA US, CSA EEVN, UR
