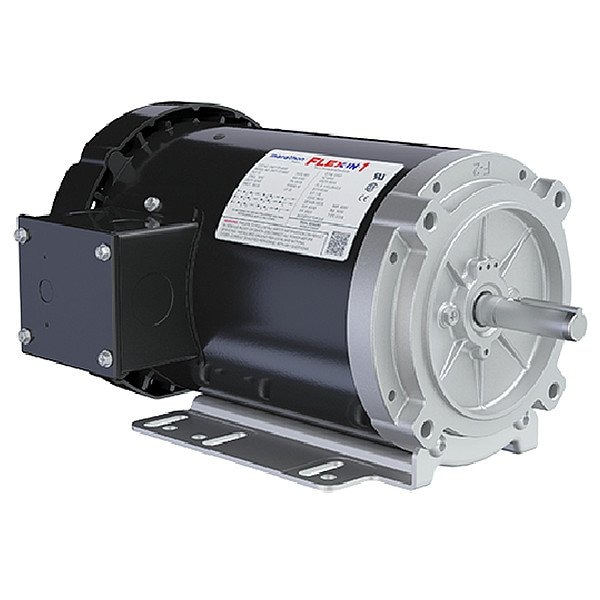

Three-Phase General Purpose Motor, 3 HP, 56HC Frame, 208-230/460V Voltage, 3,450 Nameplate RPM

Mfr # 056T34F15675
Zoro # G008376722

817.99

Free Shipping & Returns

Key Features

Nameplate RPM

3,450

Voltage

208-230/460V

Motor Mounting Type

Universal

Full Load Amps

8.2-7.6/3.8 A

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 056T34F15675
Zoro #: G008376722
UPC #: -
Country of Origin: Mexico

Dimensions

Overall Length: 13 5/16 in
Shaft Dia.: 5/8 in
Shaft Length: 1 7/8 in
Frame Size: 56HC
Shaft Diameter: 5/8 in
Wire Rope Length: 13 5/16 in
Length: 13 5/16 in

Details

Item: General Purpose Motor
HP: 3
Nameplate RPM: 3,450
Voltage: 208-230/460V
Motor Mounting Type: Universal
Full Load Amps: 8.2-7.6/3.8 A
Frame: 56HC
Motor Bearings: Ball
Motor Service Factor: 1.15
Motor Design: Three-Phase
Motor Enclosure Design: Totally Enclosed Fan Cooled
RPM Range: 0-3,450
Phase: Three
No. of Speeds: 1
Motor Shaft Rotation: CCW/CW
Hz: 60 Hz
Ins. Class: F
Max. Ambient Temp.: 40 Degrees C
Motor Frame Material: Steel
Motor Mounting Position: Horizontal
Motor Shaft Design: Keyed
Nominal Efficiency: 87.5 %
Standards: CE, CSA, UL
Motor Thermal Protection: None
Weight: 45 lb
Duty Cycle: Continuous
Inverter Rated: Yes
Usable @ 208V: Usable at 208V
NEMA Design: B
Inverter Rating: Inverter Rated
Ambient Temperature - Maximum: 40 Degrees C
Bearing Type: Ball
NEMA Design Class: B
Efficiency Rating: Standard Efficiency (IE1)
Full Load Current @ 60 Hz: 8.2-7.6/3.8 A
Application: General Purpose
Insulation Class: F
Product Type: General Purpose Motor
Shaft Design: Keyed
Number of Speeds: 1
Frequency: 60 Hz
Frame Material: Steel
Mounting Position: Horizontal
Nameplate Service Factor @ 60 Hz: 1.15
Motor Enclosure Type: Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,450, Frame 56HC, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 8.2-7.6/3.8 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW/CW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, 0-3,450, CE, CSA, UL
