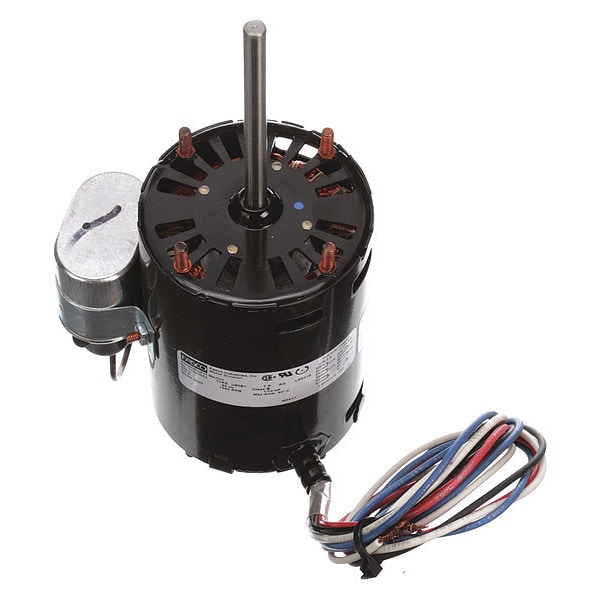

HVAC Motor, 1/10 HP, 1590 rpm, 230V, 3.3

  • Mfr # D503
  • Zoro # G6164767
product price:
$
217.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
1,590
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/10
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D503
Zoro #
G6164767
UPC #
663001027164
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
5 1/8 in
Shaft Length
3 7/8 in
Shaft Dia.
5/16 in
Bolt Circle Dia.
2 7/8 in
Overall Length
8 3/4 in
Lead Length
30 in
Stud Size
#10-32
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
5/16 in
Frame Size
3.3
Body Diameter
3.3 in
Mounting Stud Thread Size
#10-32
Wire Rope Length
8 3/4 in
Length
8 3/4 in

Details

Voltage
230V AC
Nameplate RPM
1,590
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/10
RPM Range
1,501-1,600
Motor Service Factor
1
Phase
Single
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Frame
3.3
Application
Fan/Blower
Mounting Stud Location
4/Both Ends
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Full Load Amps
1 A
Motor Mounting Type
Ring/Stud
Duty
Continuous
Motor Sub Application
Direct Drive Fan/Blower
Motor Design
Permanent Split Capacitor
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Capacitor Required
Capacitor Included
Mounting Pattern
2-7/8 x 2-7/8
Ins. Class
B
Motor Shaft Design
Flat
Number of Shafts
1
Item
Fan and Blower Motor
Includes
4 MFD 370VAC Capacitor
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Application
HVAC/R
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F2
Mounting Holes
(8) #10-32
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Weight
6 lb
Motor Frame Material
Steel
Mounting
Stud
Shaft Design
Flat
Full Load Current @ 60 Hz
1.0 A
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Frame Material
Steel
Frequency
60 Hz
Product Type
Fan and Blower Motor
Motor Enclosure Type
Open Air Over
Insulation Class
B
Bearing Type
Sleeve
Wattage
70 W

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,590 RPM, No. of Speeds 1, Voltage 230V AC, 1.0 A Full Load Amps, 3.3 Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
