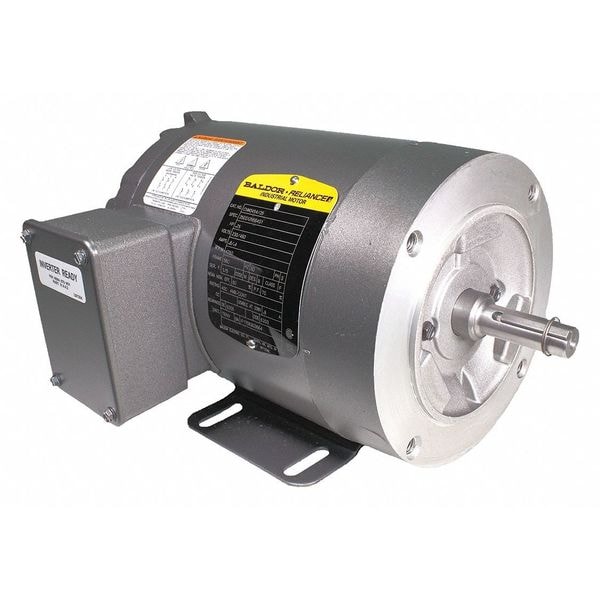

Baldor-Reliance Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM CNM3454/35 - main

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

  • Mfr # CNM3454/35

  • Zoro # G7927954

product price:  $680.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
0.8/0.4 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CNM3454/35
Zoro #
G7927954
UPC #
781568502914
Country of Origin
United States

Dimensions

Length Less Shaft
9 3/16 in
Overall Length
11 1/16 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
General Purpose Motor
HP
1/4
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
0.8/0.4 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
80 %
Standards
CSA, UR
CC Number
CC031A
Footnotes
1,30,48
Inverter Rated
No
Motor Thermal Protection
None
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
30 lb
Usable @ 208V
Usable at 208V
Nameplate RPM @ 50 Hz
2,930/2,940/2,945/2,910/2,920/2,930 RPM
Number of Speeds
1
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Application
General Purpose
Full Load Current @ 60 Hz
0.8/0.4 A
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
NEMA Design Class
B
Inverter Rating
Not Inverter Rated
Frame Material
Steel
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/4 HP, Nameplate RPM 1750 rpm, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.8/0.4 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 80 Percent, Continuous Duty, 1701-1800, CSA, UR
