Shop BALDOR-RELIANCE

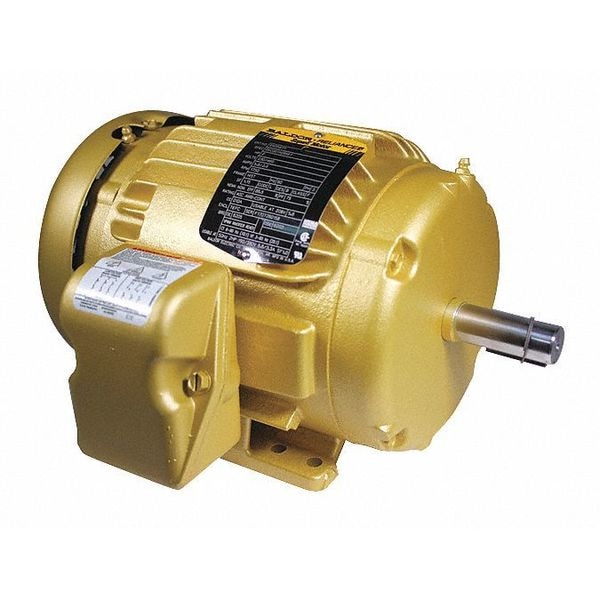

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM

  • Mfr # EM3587T

  • Zoro # G8338784

product price:
$
1,273.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.8/2.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EM3587T
Zoro #
G8338784
UPC #
781568138946
Country of Origin
United States
Item
General Purpose Motor
HP
2
Nameplate RPM
1750 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.8/2.9 A
Frame
145T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Usable at 208V
Weight
63 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
NEMA Design Class
B
Nameplate RPM @ 50 Hz
1,460 RPM
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
All Angle
Number of Speeds
1
Shaft Design
Keyed
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
5.8/2.9 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
