Shop BALDOR-RELIANCE

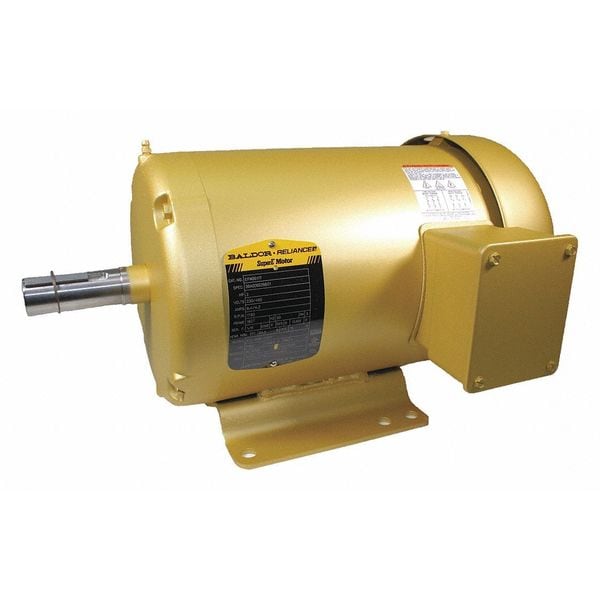

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # EFM3611T

  • Zoro # G8400034

product price:
$
1,103.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFM3611T
Zoro #
G8400034
UPC #
781568543337
Country of Origin
United States

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 1/8 in
Frame Size
182T
Wire Rope Length
16 9/16 in
Length
16 9/16 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Motor Thermal Protection
None
Footnotes
1, 30
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
NEMA Design
B
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
73 lb
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Manufacturers Warranty
3 yr
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Full Load Current @ 60 Hz
8.4/4.2 A
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Nameplate RPM @ 50 Hz
1,695 RPM
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Inverter Rating
Inverter Rated
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1760 rpm, Frame 182T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.4/4.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
