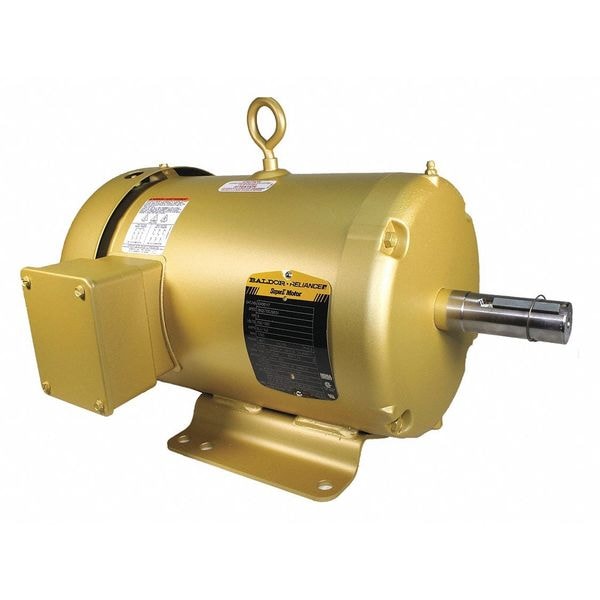

Baldor-Reliance Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM EM3611T - main

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # EM3611T

  • Zoro # G5145436

product price:  $945.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3611T
Zoro #
G5145436
UPC #
781568138960
Country of Origin
United States

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 9/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Weight
72 lb
Usable @ 208V
Yes
Usable @ 200V
No

Description

The BALDOR-RELIANCE - EM3611T is a 3-phase AC General Purpose Motor, designed for industrial and commercial use. This motor converts electrical energy into mechanical energy to power various types of machinery. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3611T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA classifies and tracks this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for continuous operation within its specified ratings under normal conditions.
  • Frame: The 182T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: At full load, the motor is rated to draw a maximum current of 8.4/4.2 A; it's important to match these specifications with your power supply requirements.
  • NEMA Premium(R) Rated: This certification acknowledges that the motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: The product is compatible with variable frequency drives for potential control over speed and torque as per application needs.
