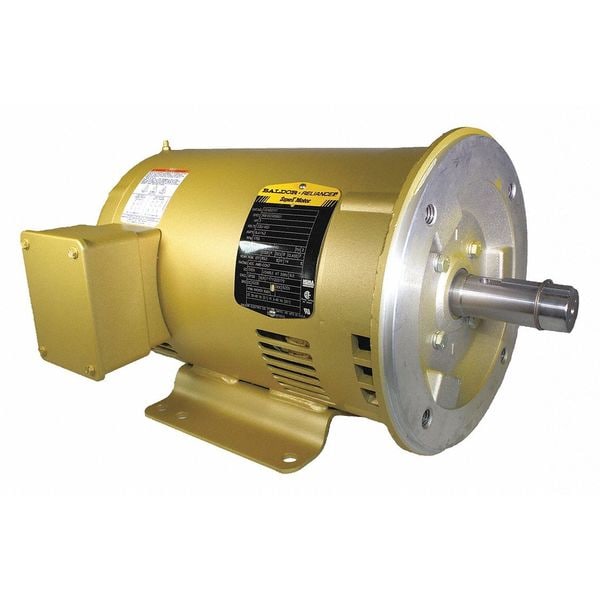

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM

  • Mfr # CEM3211T

  • Zoro # G8450617

product price:  $1,168.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1765 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
8.4/4.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3211T
Zoro #
G8450617
UPC #
781568603598
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/4 in
Overall Length
15 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
182TC
Shaft Diameter
1 1/8 in
Wire Rope Length
15 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1765 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
8.4/4.2 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Inverter Rated
No
Motor Thermal Protection
None
Footnotes
1, 30
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
71 lb
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Bearing Type
Ball
Inverter Rating
Not Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
3 yr
Product Type
General Purpose Motor
Insulation Class
F
Number of Speeds
1
Full Load Current @ 60 Hz
8.4/4.2 A
Nameplate Voltage @ 50 Hz
230/460V AC
Nameplate RPM @ 50 Hz
1,765/1,455 RPM
Motor Enclosure Type
Open Drip Proof

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1765 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.4/4.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR, Includes Conduit Box
