Shop FASCO

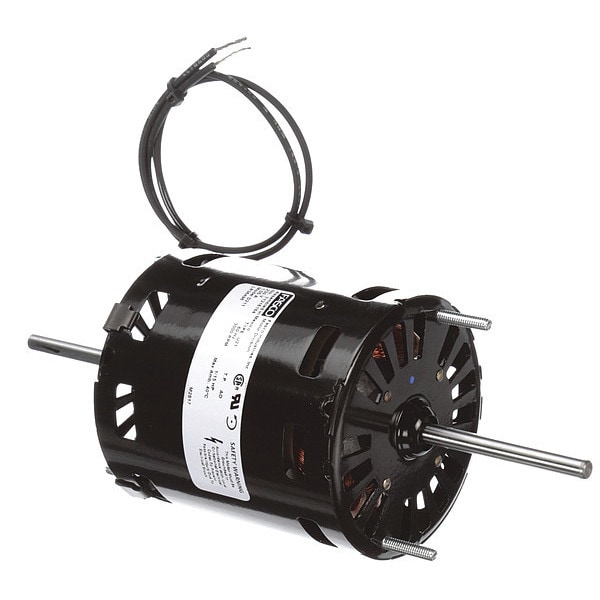

HVAC Motor, 1/15 HP, 3000 rpm, 230V, 3.3

  • Mfr # D211

  • Zoro # G7578015

product price:  $120.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Dripproof
Number of Speeds
1
HP
1/15
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
D211
Zoro #
G7578015
UPC #
815585029014
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
3 3/4 in
Shaft Length
1 5/8 in
Shaft Dia.
1/4 in
Overall Length
8 7/8 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3

Details

Voltage
230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Dripproof
Number of Speeds
1
HP
1/15
RPM Range
1,801-3,000
Motor Thermal Protection
Auto
No. of Speeds
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Pattern
2-7/8 x 2-7/8
Frame
3.3
Phase
Single
Application
Fan/Blower
Ins. Class
B
Duty
Continuous
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Number of Shafts
1
Motor Mounting Type
Rigid Base
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Full Load Amps
1.1 A
Item
Fan and Blower Motor
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Mounting Stud Location
2/Both Ends
Motor Service Factor
1
Motor Design
Shaded Pole
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Mounting Position
Horizontal
Nominal Efficiency
0.57 %
Weight
4 lb
Duty Cycle
Continuous
Mounting
Stud
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Frequency
60 Hz
Sub Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.1 A
Wattage
250 W
Ambient Temperature - Maximum
40 Degrees C
Product Type
Fan and Blower Motor
Insulation Class
B
Drive Type
Belt Drive
Shaft Design
Flat
Mounting Position
Horizontal

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
