Shop BALDOR-RELIANCE

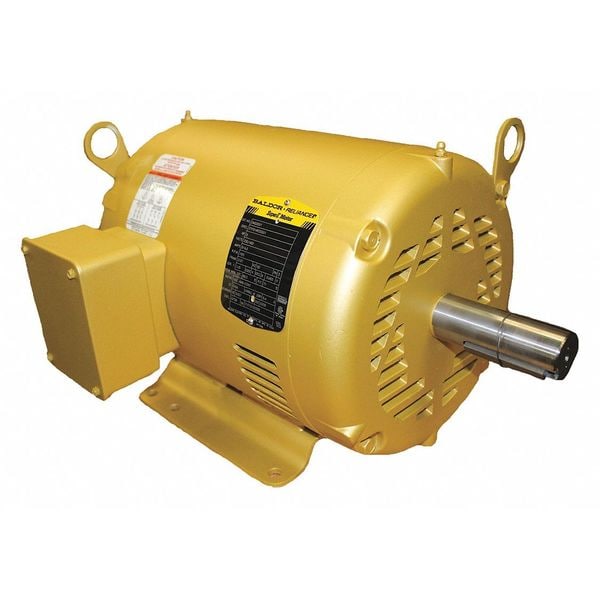

Three-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1165 rpm Nameplate RPM

  • Mfr # EM3305T

  • Zoro # G7866311

product price:
$
1,388.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1165 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
9/4.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3305T
Zoro #
G7866311
UPC #
781568104507
Country of Origin
United States

Dimensions

Length Less Shaft
12 15/16 in
Overall Length
16 5/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 3/8 in
Frame Size
213T
Wire Rope Length
16 5/16 in
Length
16 5/16 in

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1165 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
9/4.5 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
114 lb
Inverter Rating
Inverter Rated
Nameplate RPM @ 50 Hz
1,450/1,455 RPM
Insulation Class
F
NEMA Design Class
B
Product Type
General Purpose Motor
Mounting Position
All Angle
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Bearing Type
Ball
Shaft Design
Keyed
Full Load Current @ 60 Hz
9/4.5 A
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Manufacturers Warranty
3 yr

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1165 rpm, Frame 213T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 9/4.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CSA, CSA EEV, UR
