  11. Capacitor-Start Belt Drive Motor, 1/2 HP, 115/230V AC Voltage, 48Z Frame, 1,725 Nameplate RPM
Shop All Capacitor Start AC Motors
Dayton

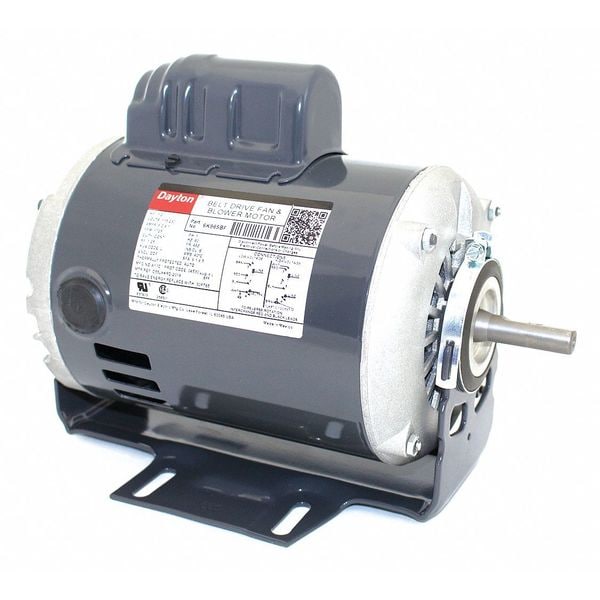

Capacitor-Start Belt Drive Motor, 1/2 HP, 115/230V AC Voltage, 48Z Frame, 1,725 Nameplate RPM

original price: $253.50
8% off
new price: $231.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Open Dripproof
  • Motor Mounting Type Cradle Base
  • HP 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Shaft Dia. 1/2 in
Overall Length 10 5/16 in
Length Less Shaft 8 5/8 in
Body Dia. 5 5/8 in
Shaft Length 1 7/8 in

Details

Item Belt Drive Motor
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
HP 1/2
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 48Z
Motor Thermal Protection Auto
Motor Service Factor 1.25
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application HVAC/R
Motor Sub Application Belt Drive Fan/Blower
Nameplate RPM 1,725
Motor Frame Material Rolled Steel
Motor Mounting Position All Angle
Motor Shaft Design Flat
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start
Standards CSA Certified, UL Recognized
Phase Single
Motor Bearings Ball
Frame Material Rolled steel
Full Load Amps 8.2/4.1 A
Ins. Class B
Max. Ambient Temp. 104 Degrees F
Hz 60 Hz
Duty Continuous
Duty Cycle Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 8.2/4.1 A Full Load Amps, 48Z Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
