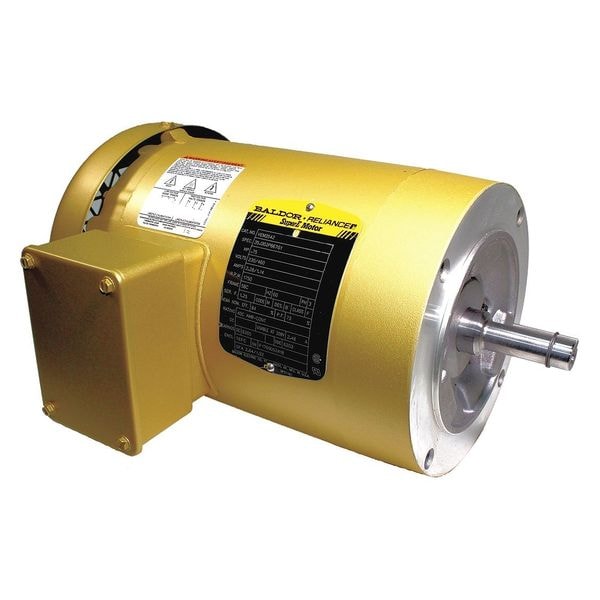

Baldor-Reliance Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM VEM3542 - main

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

  • Mfr # VEM3542

  • Zoro # G8406072

product price:  $851.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.5-2.28/1.14 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VEM3542
Zoro #
G8406072
UPC #
781568414309
Country of Origin
United States

Dimensions

Length Less Shaft
10 3/8 in
Overall Length
12 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.5-2.28/1.14 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
84 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Includes
Conduit Box
Inverter Rated
Yes
Motor Thermal Protection
None
Footnotes
1
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Yes
Usable @ 200V
No
Weight
34 lb
Duty Cycle
Continuous
NEMA Design
B

Description

The BALDOR-RELIANCE - VEM3542 is a 3-phase AC General Purpose Motor, designed for use in various industrial and commercial settings. This motor converts electrical energy into mechanical energy to power different types of machinery. Its versatility allows it to be used across multiple sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - VEM3542 General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: Continuous duty cycle refers to the product's designed operation under specific conditions.
  • Frame: 56C frame size conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Draws a maximum current of 2.5-2.28/1.14 A when operating at full capacity, as per manufacturer specifications.
  • NEMA Premium(R) Rated: Acknowledges that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice.
  • Inverter Rated: Designed for use with a variable frequency drive, according to manufacturer guidelines.
  • Motor Enclosure Design: Totally enclosed fan-cooled design is intended to limit exposure to environmental factors, based on manufacturer's design parameters
