Shop BALDOR-RELIANCE

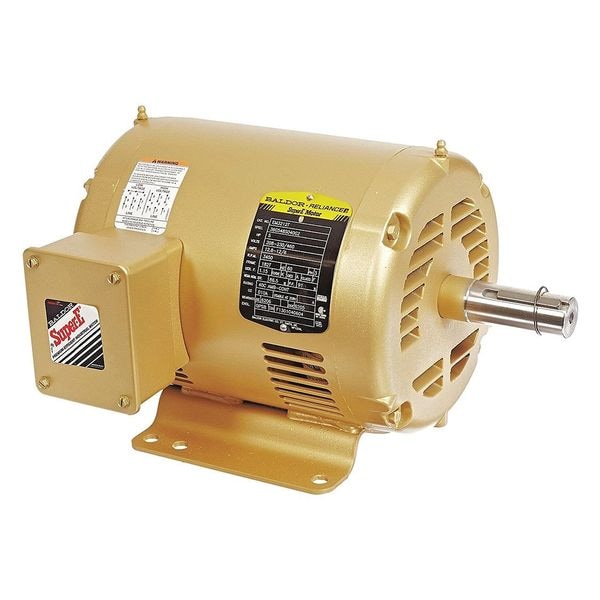

Three-Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # EM3212T

  • Zoro # G7495135

product price:  $1,105.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.0/6.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3212T
Zoro #
G7495135
UPC #
781568104538
Country of Origin
United States

Dimensions

Length Less Shaft
10 7/8 in
Overall Length
13 5/8 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 1/8 in
Frame Size
182T
Wire Rope Length
13 5/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.0/6.0 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Weight
75 lb
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Bearing Type
Ball
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
2,955/2,960/2,965/2,945/2,950 RPM
Full Load Current @ 60 Hz
12.0/6.0 A
Product Type
General Purpose Motor
Mounting Position
All Angle
Frequency
60 Hz
Manufacturers Warranty
3 yr
Inverter Rating
Inverter Rated

Description

The BALDOR-RELIANCE - EM3212T is a 3-phase AC general purpose motor, widely used in industrial and commercial settings for power transmission and pneumatics applications. This versatile motor converts electrical energy into mechanical energy to operate various types of machinery across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3212T General Purpose Motor:

  • CC Number: The unique identifier assigned by EASA based on design, specifications, and performance characteristics.
  • Duty Cycle: Intended for continuous operation within specified parameters.
  • Frame: 182T size conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Draws maximum current of 12.0/6.0 A when operating at full capacity.
  • NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards.
  • Horsepower (HP): Has an output of 5 HP under standard operating conditions.
  • Inverter Rated: Compatible with a variable frequency drive as per the manufacturer's specifications
Here are the problematic phrases | replacement phrases: Insulation Class (Ins. Class): F class insulation can operate effectively without deteriorating over time at high temperatures | Insulation Class (Ins. Class): F class insulation is rated to withstand certain temperature ranges as per manufacturer's specifications.
